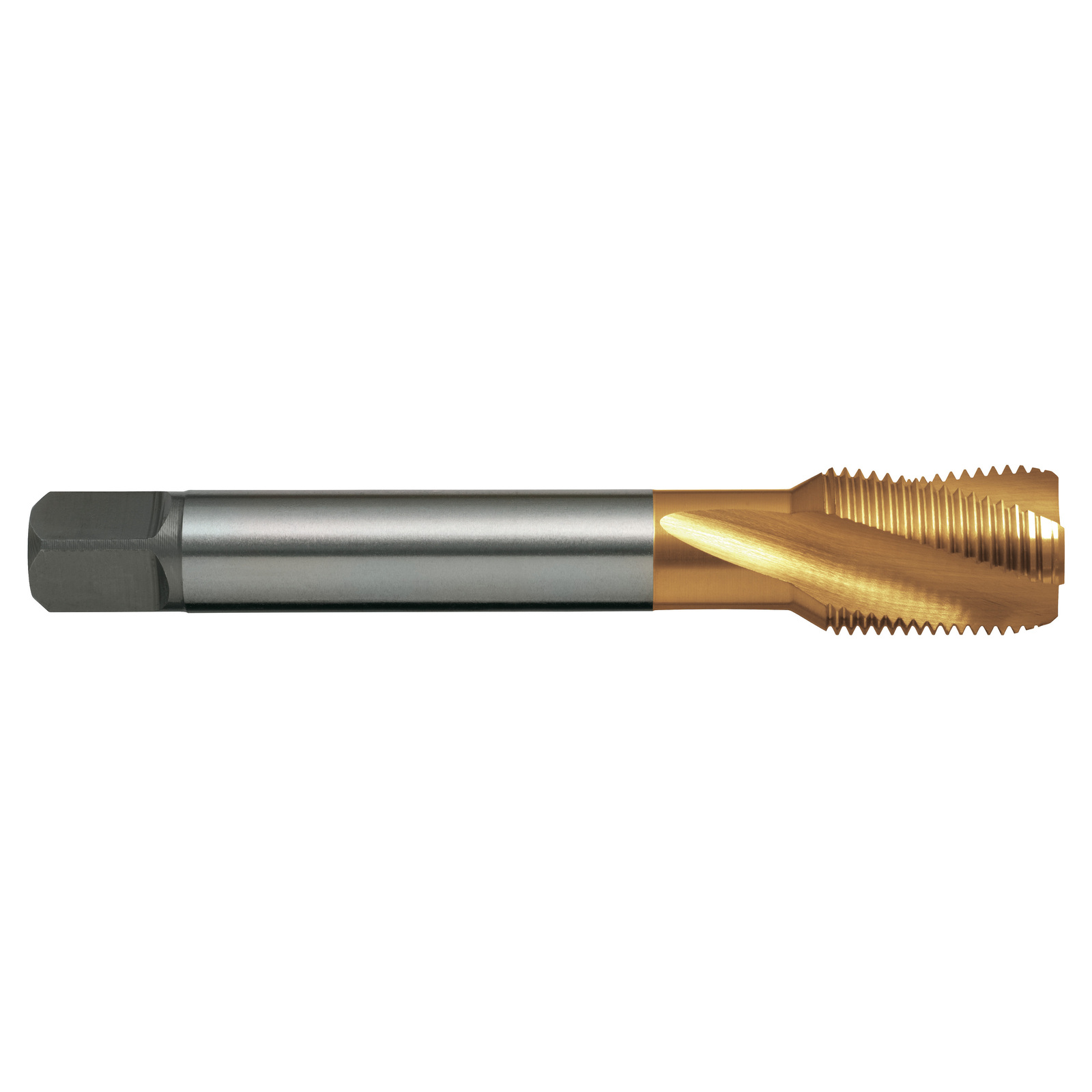

TAP T279 G 5/8-14 (BSPF) SPIRAL R15 N DIN5156 C HSSE TiN T2792291



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Blind holes
  • Suitable for machine operations
  • Depths up to 1.5 x d1

Specifications

  • Designation: N (for normal and general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R15
  • X: als
  • Type: Spiral Flute
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228
  • Lead: Form C / 3 x P

Part Number/SKU: T2792291

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2792291
Barcode # 9311963183565
Brand Sutton Tools
Shipping Weight 0.2440kg
Shipping Width 0.029m
Shipping Height 0.029m
Shipping Length 0.131m
Shipping Cubic 0.000110171m3
