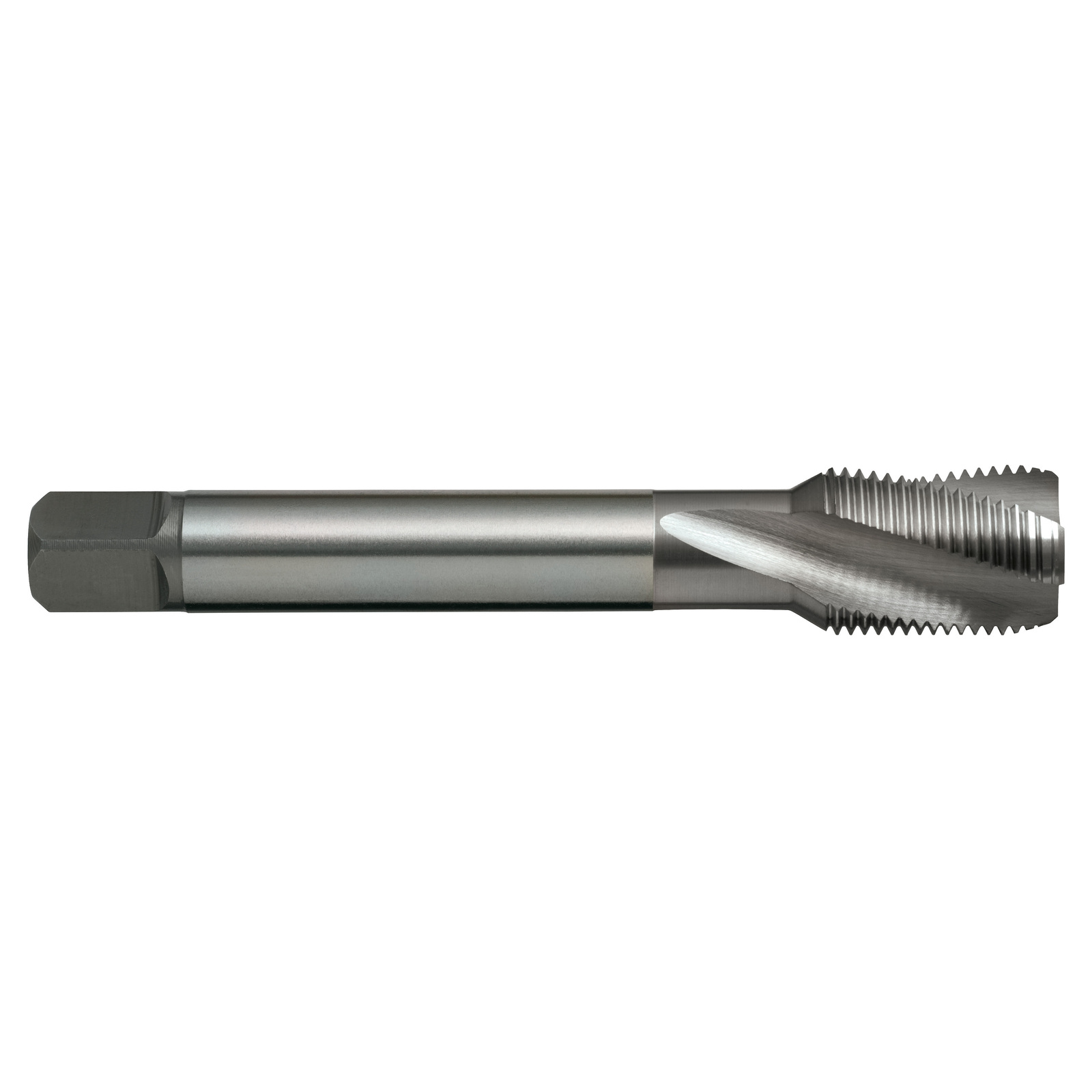

Tap T278 G 5/8-14 (BSPF) Spiral R15 N Din5156 C HSSE Sutton T2782291

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Blind holes
• Suitable for machine operations
• Depths up to 1.5 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 1.5xD
• Shank Form: Reduce Shank (with square drive)
• Helix Angle: R15
• X: als
• Type: Spiral Flute
• Standard: DIN5156
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Nut Tolerance: ISO 228
• Lead: Form C / 3 x P

Part Number/SKU: T2782291
