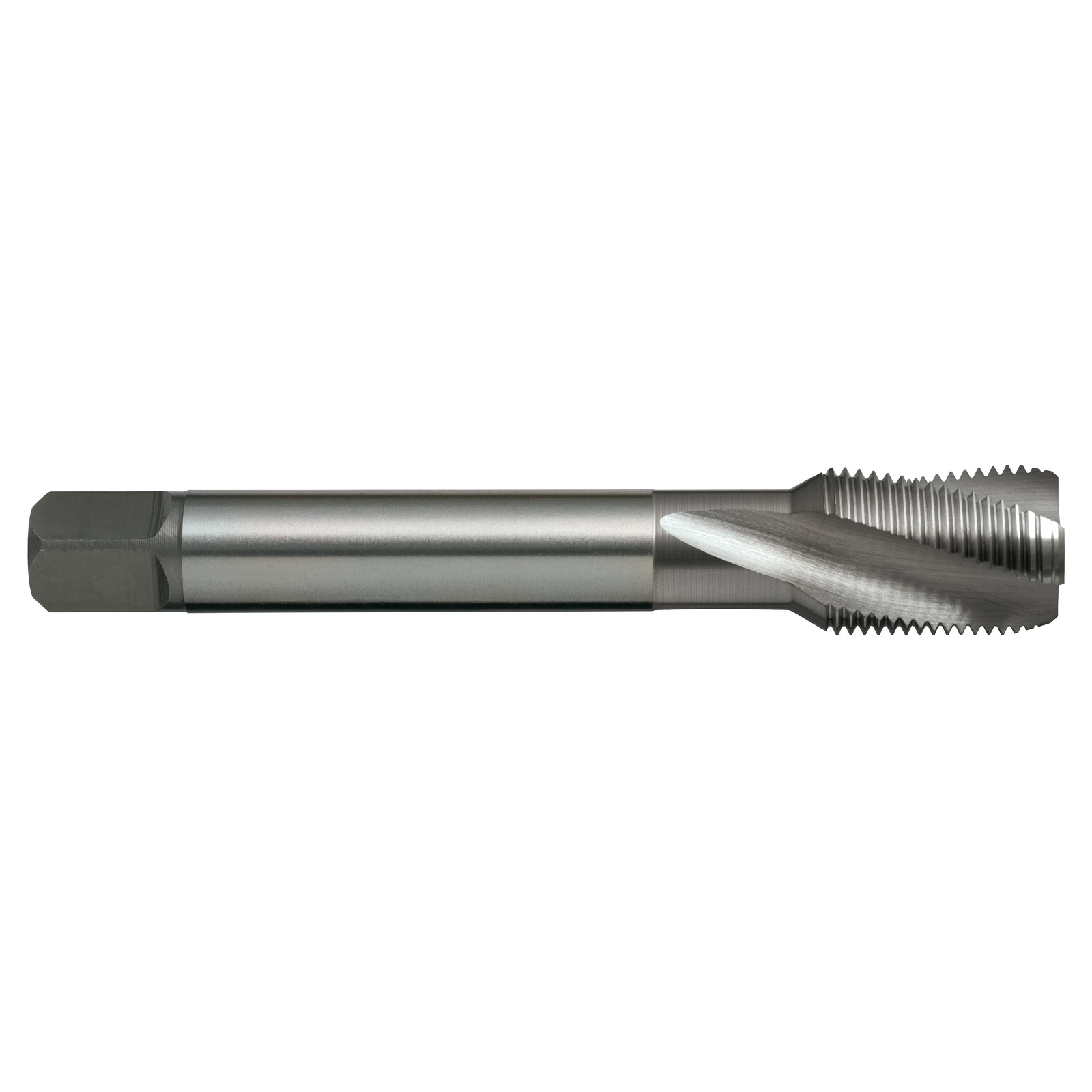

Tap T278 G 3/8-19 (BSPF) Spiral R15 N Din5156 C HSSE Sutton T2781666



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Blind holes
  • Suitable for machine operations
  • Depths up to 1.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Reduce Shank (with square drive)
  • Helix Angle: R15
  • X: als
  • Type: Spiral Flute
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228
  • Lead: Form C / 3 x P

Part Number/SKU: T2781666

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2781666
Barcode # 9311963170503
Brand Sutton Tools
Shipping Weight 0.0870kg
Shipping Width 0.019m
Shipping Height 0.019m
Shipping Length 0.103m
Shipping Cubic 0.000037000m3
