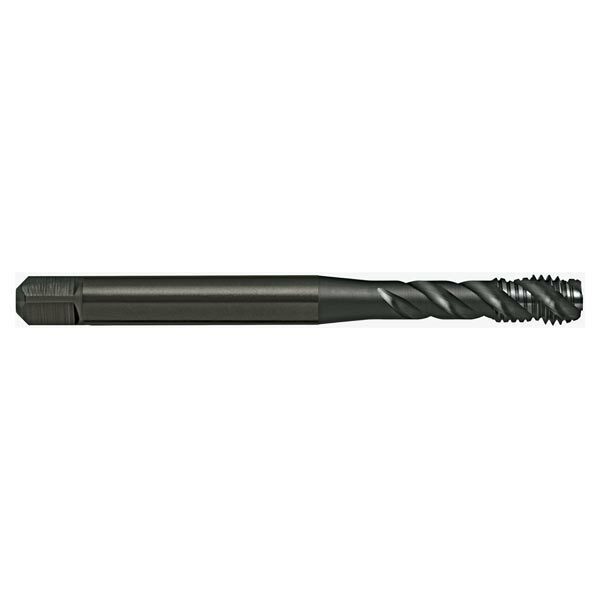

Tap T276 UNF 7/16-20 2B Spiral R45VA-DH Din2184-1 C HSSE Blu Sutton T2761111



Features

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • Blind holes
  • Suitable for synchronous tapping in machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN2184-1
  • Thread Form: UNF
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Part Number/SKU: T2761111

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2761111
Barcode # 9311963192222
Brand Sutton Tools
Shipping Weight 0.0420kg
Shipping Width 0.016m
Shipping Height 0.013m
Shipping Length 0.138m
Shipping Cubic 0.000029000m3
