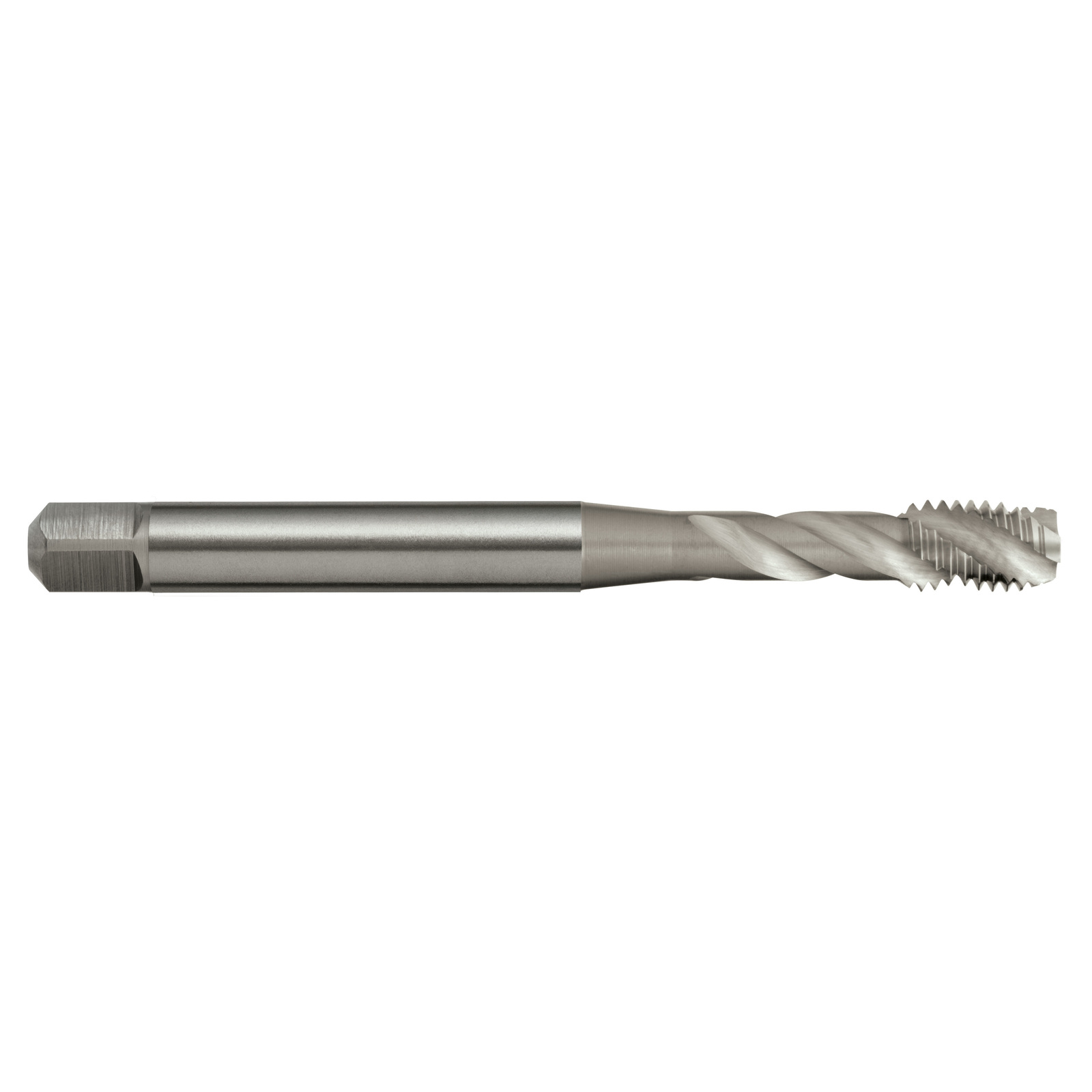

Tap T275 UNF 5/8-18 2B Spiral R40 N DIN2184-1 C HSSE Sutton T2751588



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Blind holes
  • Suitable for machine operations
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN2184-1
  • Thread Form: UNF
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Part Number/SKU: T2751588

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2751588
Barcode # 9311963151816
Brand Sutton Tools
Shipping Weight 0.0500kg
Shipping Width 0.020m
Shipping Height 0.115m
Shipping Length 0.020m
Shipping Cubic 0.000046000m3
