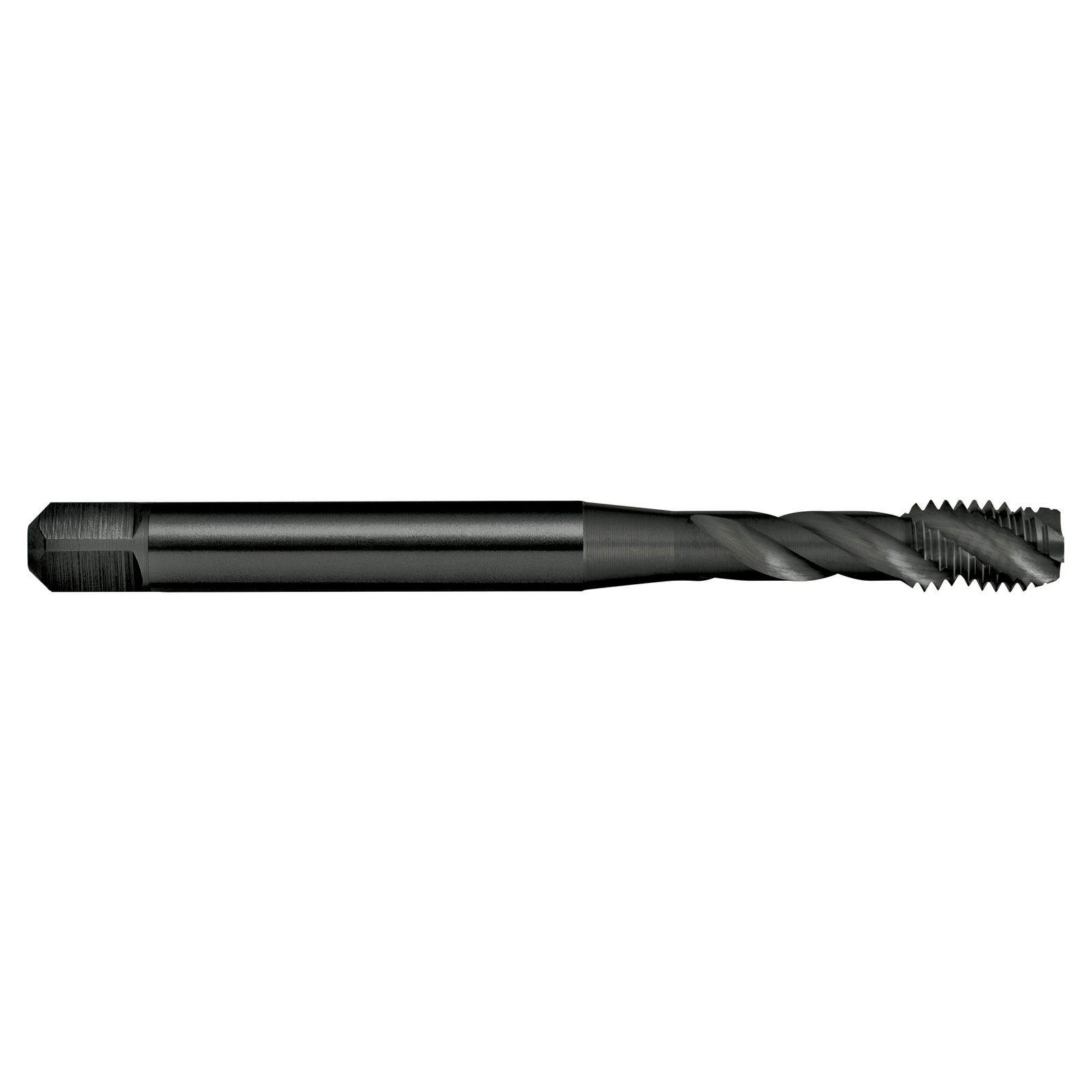

Tap T266 UNC 1/4-20 2B Spiral R40 NH Din2184-1 C PM-V3 Blu Sutton T2660635



Features

  • Use in harder short chipping materials up to 42 HRc
  • Blind holes
  • Suitable for synchronous tapping in machine operations
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: NH
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Part Number/SKU: T2660635

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2660635
Barcode # 9311963428666
Brand Sutton Tools
Shipping Weight 0.0200kg
Shipping Width 0.009m
Shipping Height 0.009m
Shipping Length 0.094m
Shipping Cubic 0.000008000m3
