Tap T263 UN 1-7/8-8 2B Spiral R40 VA Din2184-1 C HSSE Sutton T2634763

Features

• Use in stainless steels and high strength steels up to 1000N/mm2
• Blind holes
• Suitable for synchronous tapping in machine operations
• Depths up to approx. 2.5 x d1

Specifications

• Designation: VA (for stainless and tough steels)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 2.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R40
• X: als
• Type: Spiral Flute
• Standard: DIN2184-1
• Thread Form: Unified National Form 60° (8UN)
• Nut Tolerance: 2B
• Lead: Form C / 3 x P

Part Number/SKU: T2634763

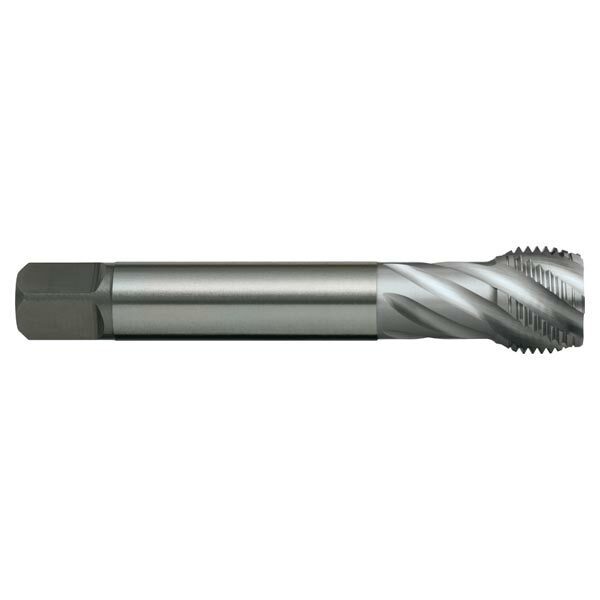

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
