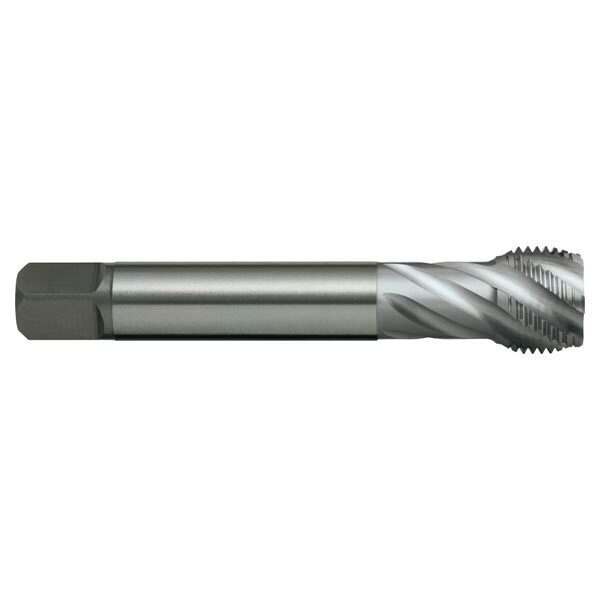

Tap T263 UN 1-5/8-8 2B Spiral R40 VA Din2184-1 C HSSE Sutton T2634128



Features

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • Blind holes
  • Suitable for synchronous tapping in machine operations
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN2184-1
  • Thread Form: Unified National Form 60° (8UN)
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Part Number/SKU: T2634128

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2634128
Barcode # 9311963394107
Brand Sutton Tools
Shipping Weight 1.2240kg
Shipping Width 0.051m
Shipping Height 0.051m
Shipping Length 0.217m
Shipping Cubic 0.000564417m3
