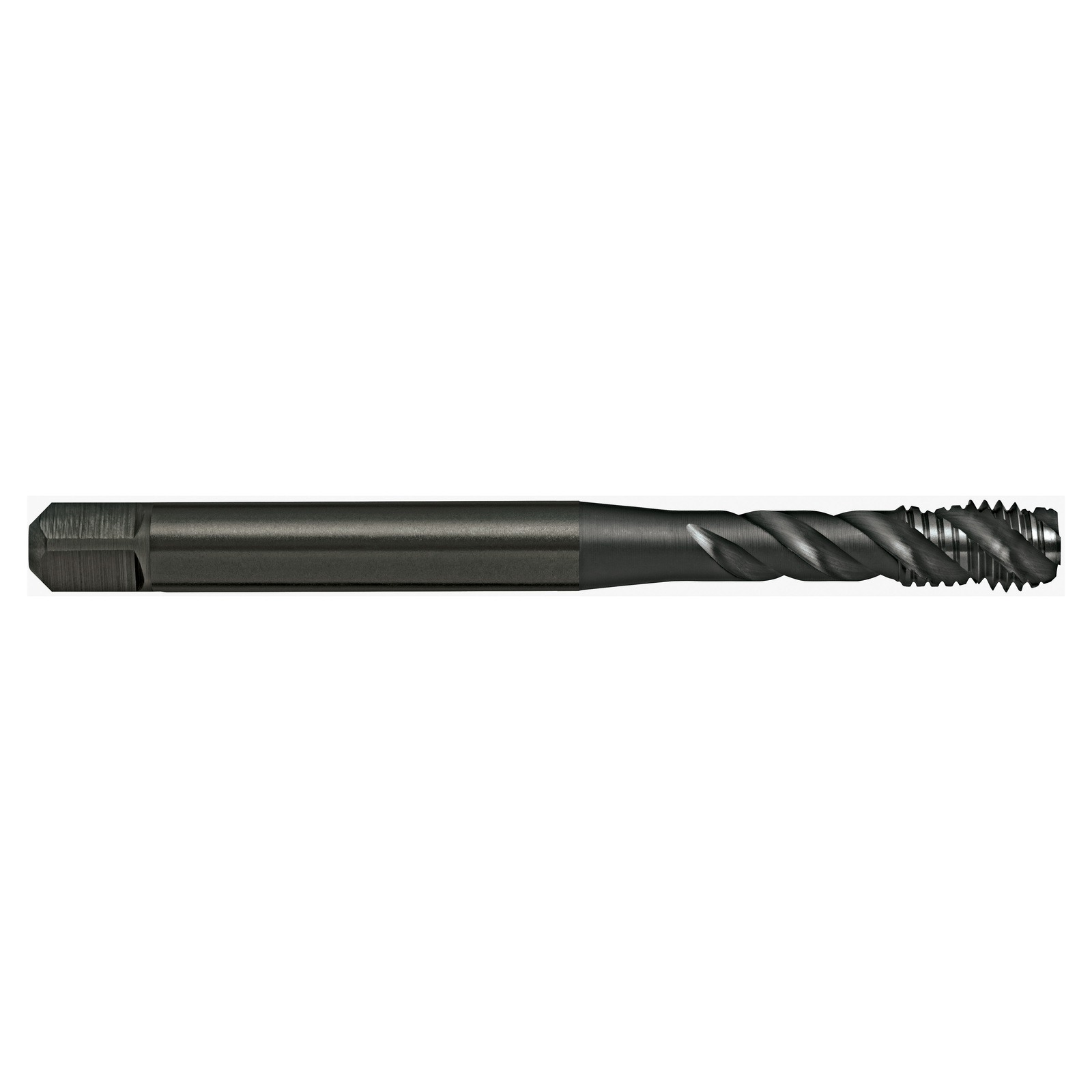

Tap T261 UNC 1-8 2B Spiral R45 VA-DH Din2184-1 C HSSE Blu Sutton T2612540

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Blind holes
• Suitable for machine operations
• Depths up to approx. 2.5 x d1

Specifications

• Designation: VA (for stainless and tough steels)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• Helix Angle: R45
• X: als
• Type: Spiral Flute
• Standard: DIN2184-1
• Thread Form: UNC
• Nut Tolerance: 2B
• Lead: Form C / 3 x P

Part Number/SKU: T2612540

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
