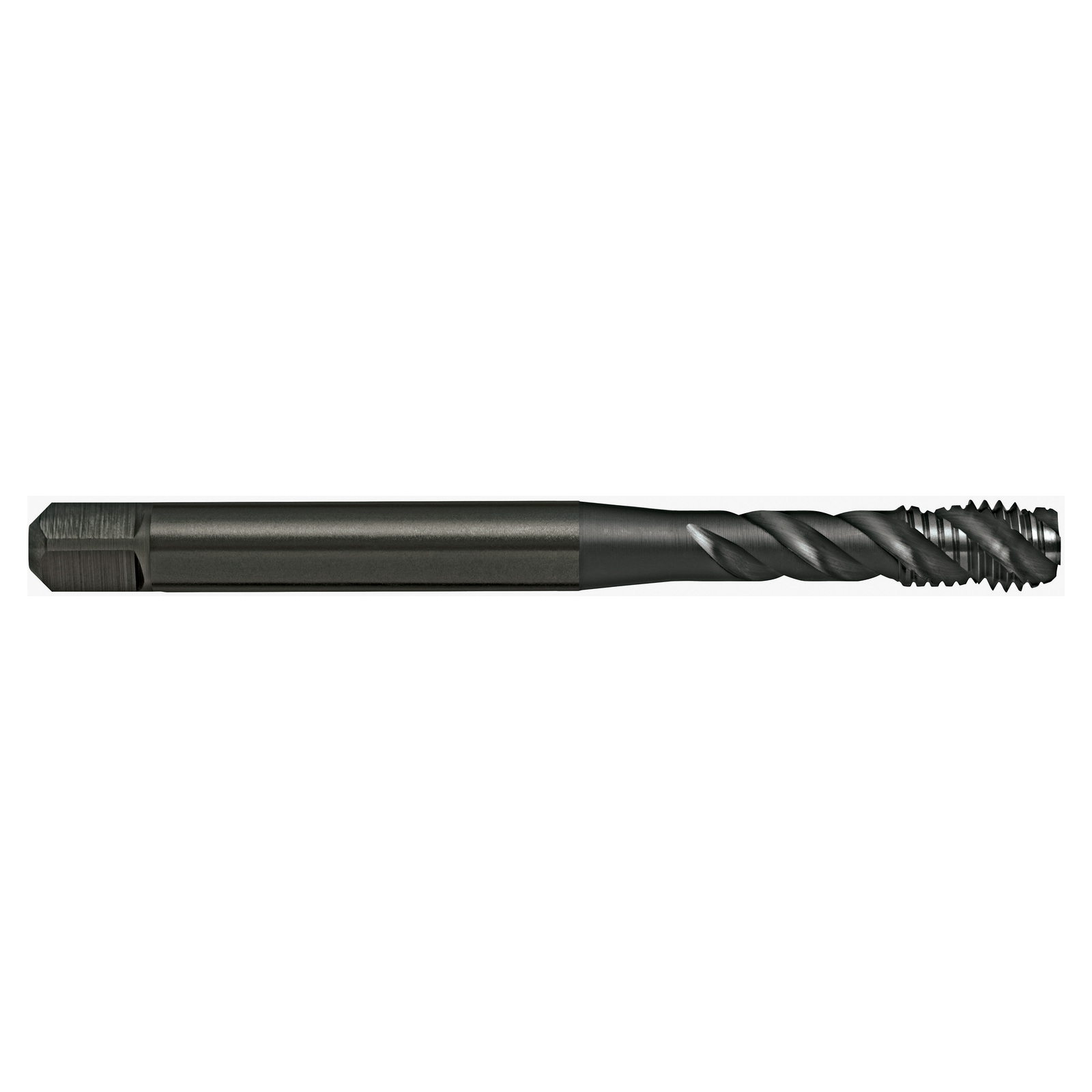

Tap T261 UNC 1/2-13 2B Spiral R45 VA-DH Din2184-1 C HSSE Blu Sutton T2611270





Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Blind holes
  • Suitable for machine operations
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Part Number/SKU: T2611270

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2611270
Barcode # 9311963708447
Brand Sutton Tools
Shipping Weight 0.0560kg
Shipping Width 0.018m
Shipping Height 0.014m
Shipping Length 0.110m
Shipping Cubic 0.000028000m3
