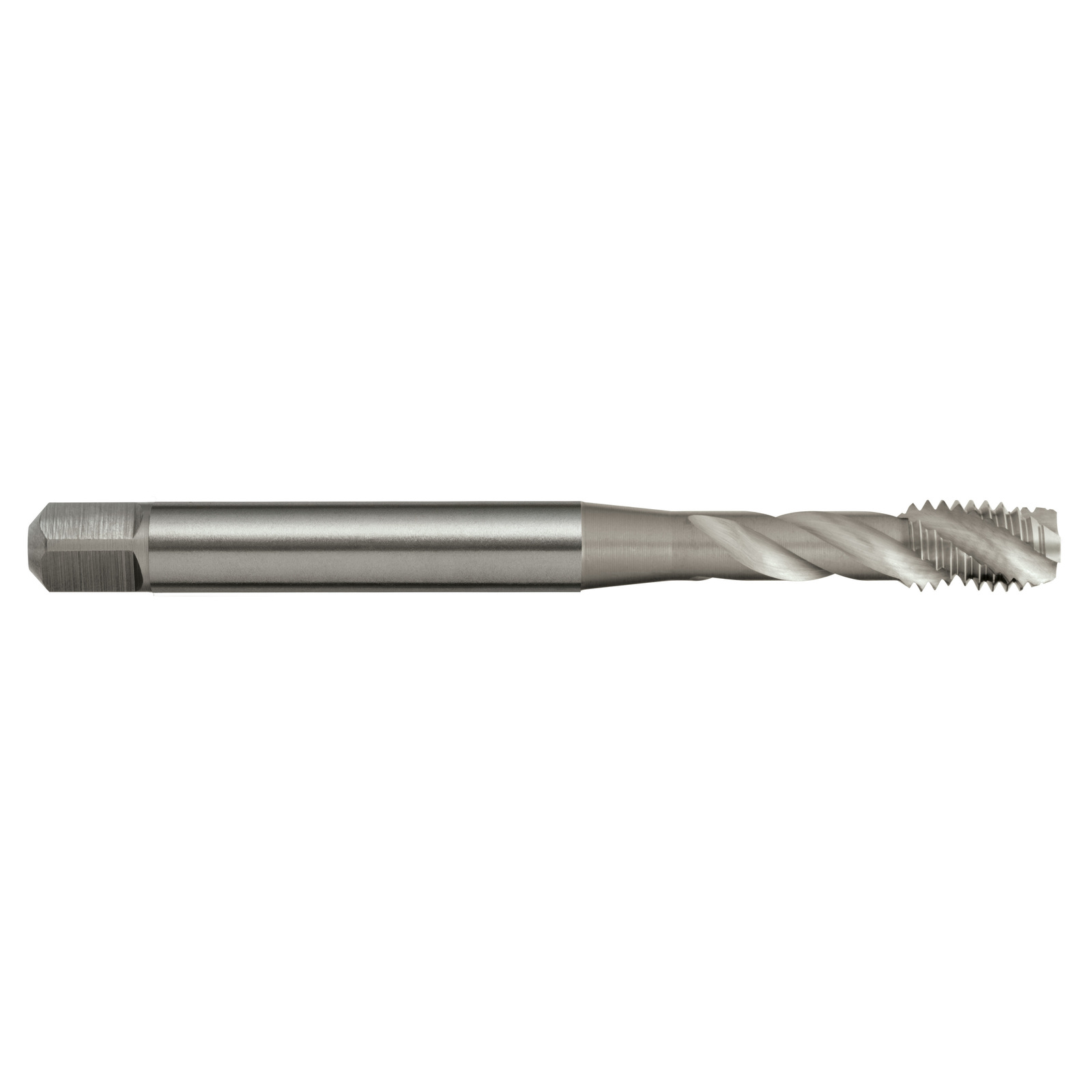

Tap T258 UNC 9/16-12 2B Spiral R40 N DIN2184-1 C HSSE Sutton T2581429



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Blind holes
  • Suitable for machine operations
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Part Number/SKU: T2581429

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2581429
Barcode # 9311963707778
Brand Sutton Tools
Shipping Weight 0.0760kg
Shipping Width 0.017m
Shipping Height 0.017m
Shipping Length 0.113m
Shipping Cubic 0.000033000m3
