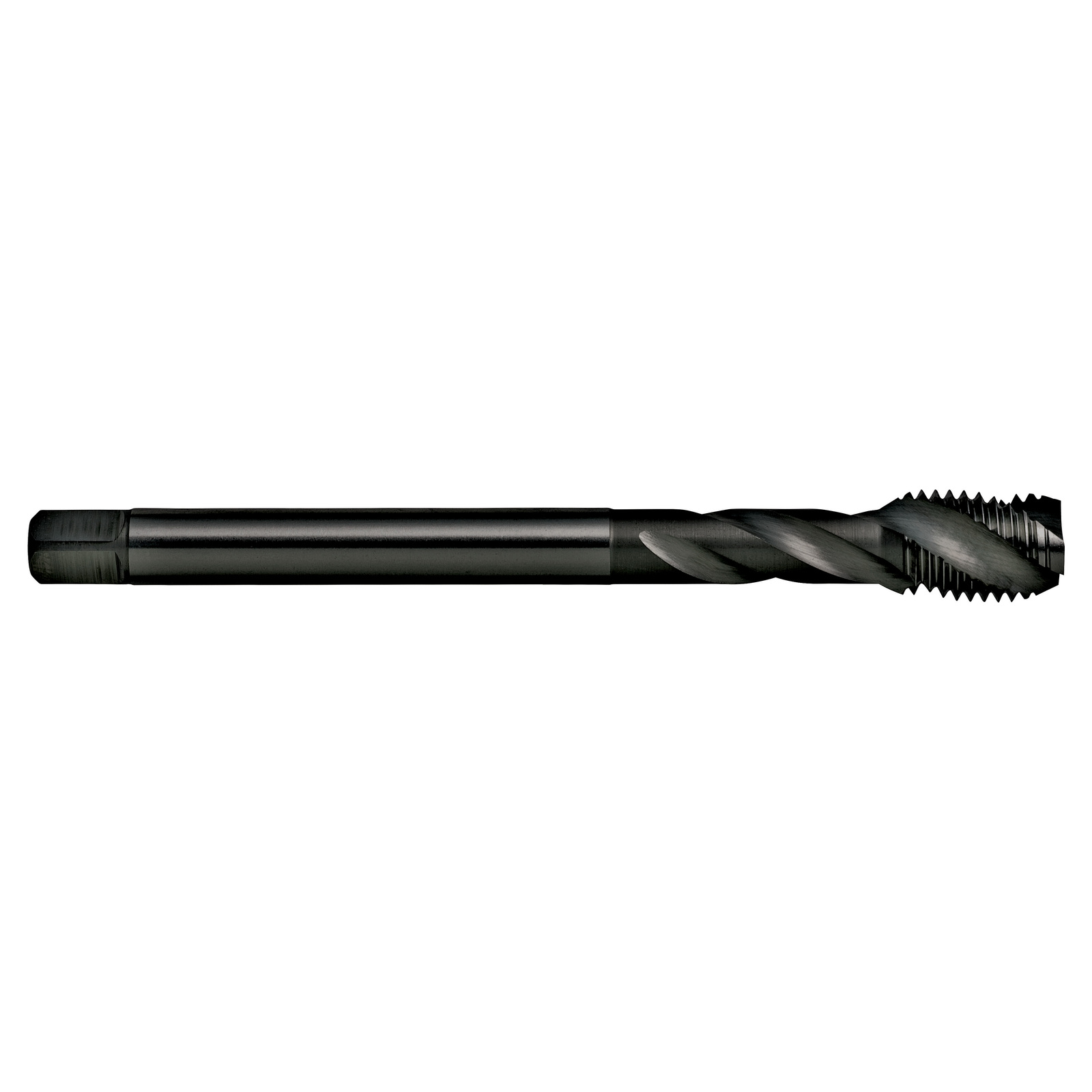

Tap T249 MF 10x1.25 6H Spiral R45 VA-DH Din374 C HSSE Blu SuttonT2491006

Features

• Use in stainless steels and high strength steels up to 1000N/mm2
• Blind holes
• Suitable for synchronous tapping in machine operations
• Depths up to approx. 3 x d1

Specifications

• Designation: VA (for stainless and tough steels)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R45
• X: als
• Type: Spiral Flute
• Standard: DIN374
• Thread Form: ISO Metric Fine (MF)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Part Number/SKU: T2491006
