TAP T248 MF 6x0.75 6H SPIRAL R40 N DIN374 C HSSE TiN T2480604

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Blind holes
• Suitable for machine operations
• Depths up to approx. 2.5 x d1

Specifications

• Designation: N (for normal and general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 2.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R40
• X:als
• Type:Spiral Flute
• Standard: DIN374
• Thread Form: ISO Metric Fine (MF)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Part Number/SKU: T2480604

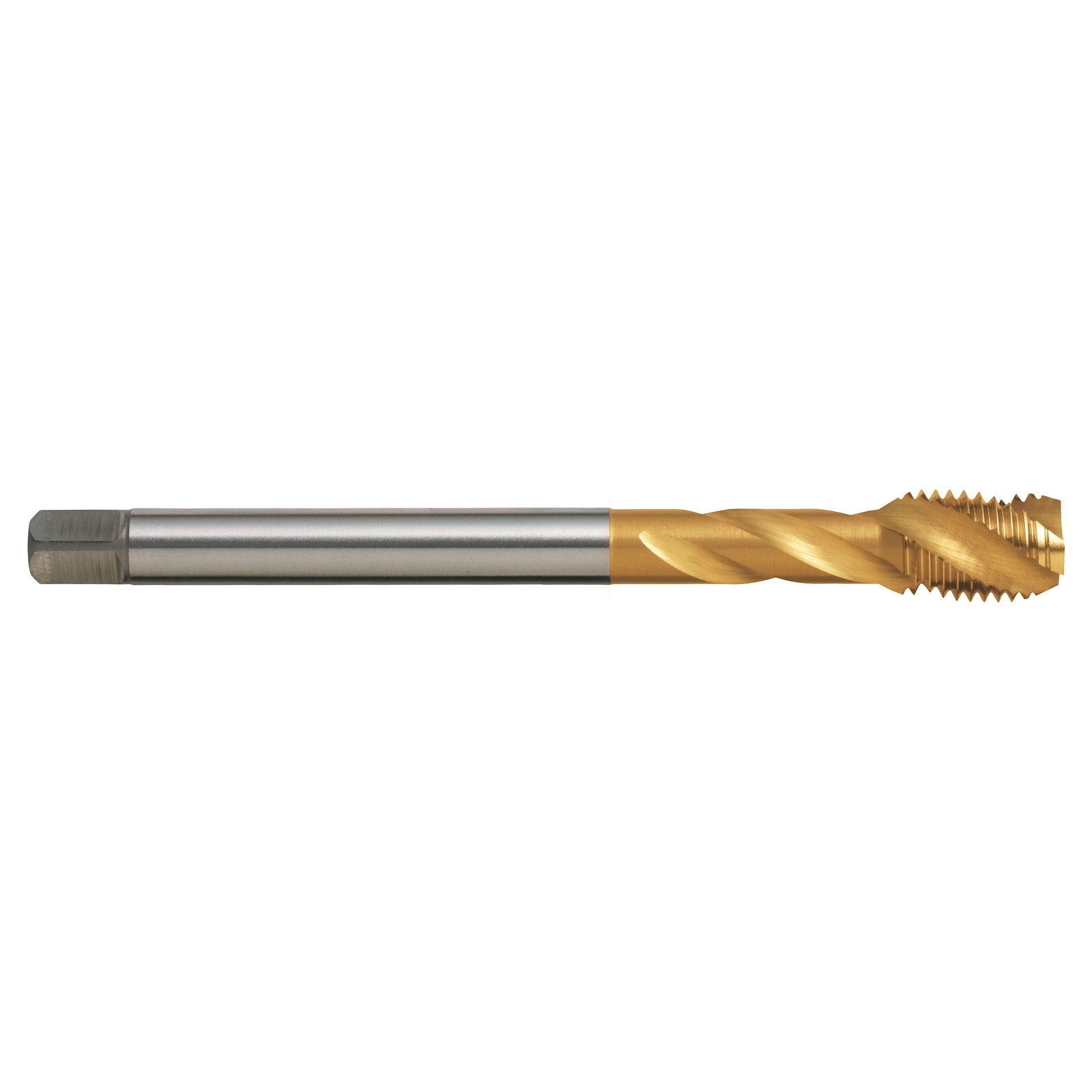

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
