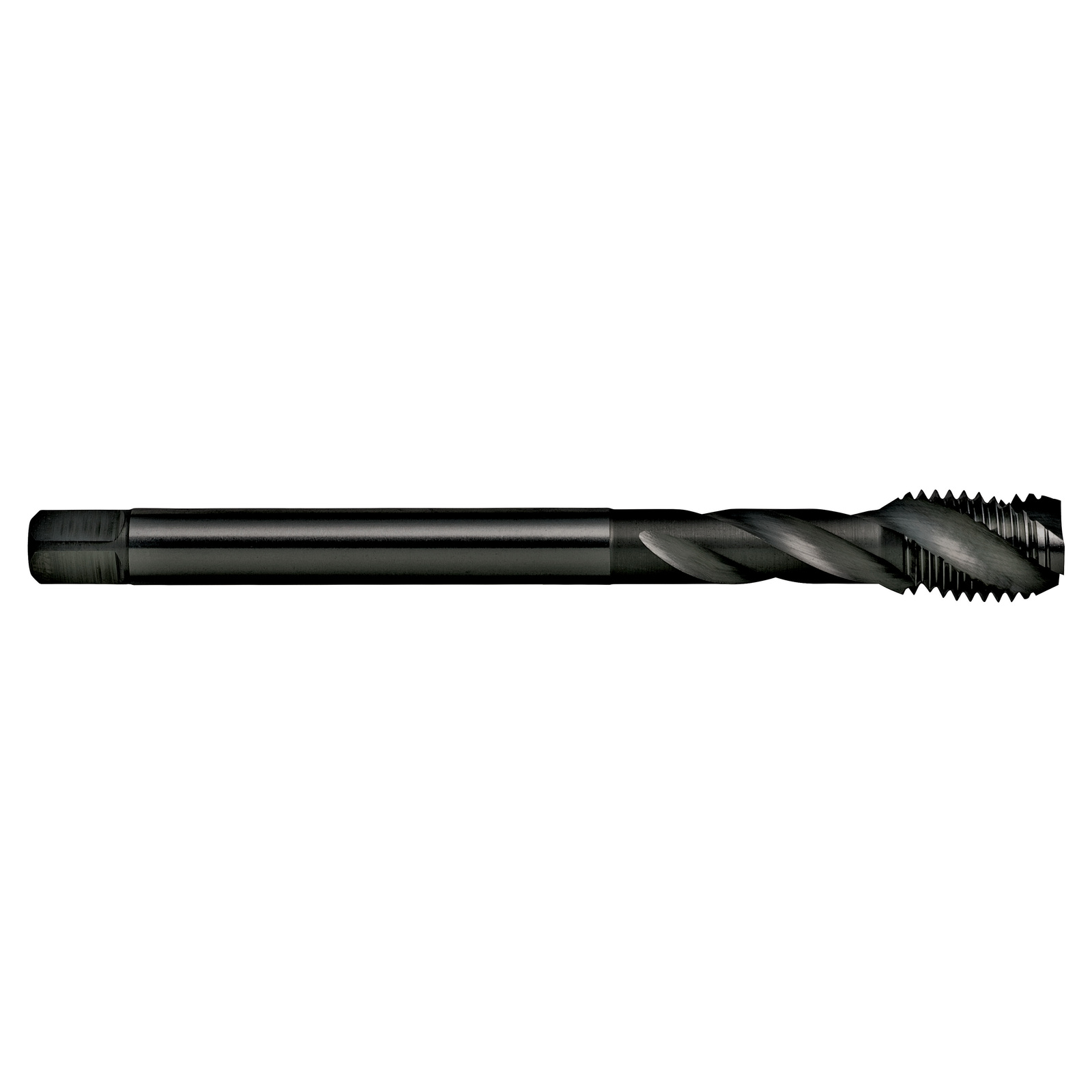

Tap T247 MF 18x1.5 6H Spiral R40 N Din374 C HSSE Blu Sutton T2471807



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Blind holes
  • Suitable for machine operations
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T2471807

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2471807
Barcode # 9311963520681
Brand Sutton Tools
Shipping Weight 0.1260kg
Shipping Width 0.024m
Shipping Height 0.024m
Shipping Length 0.114m
Shipping Cubic 0.000066000m3
