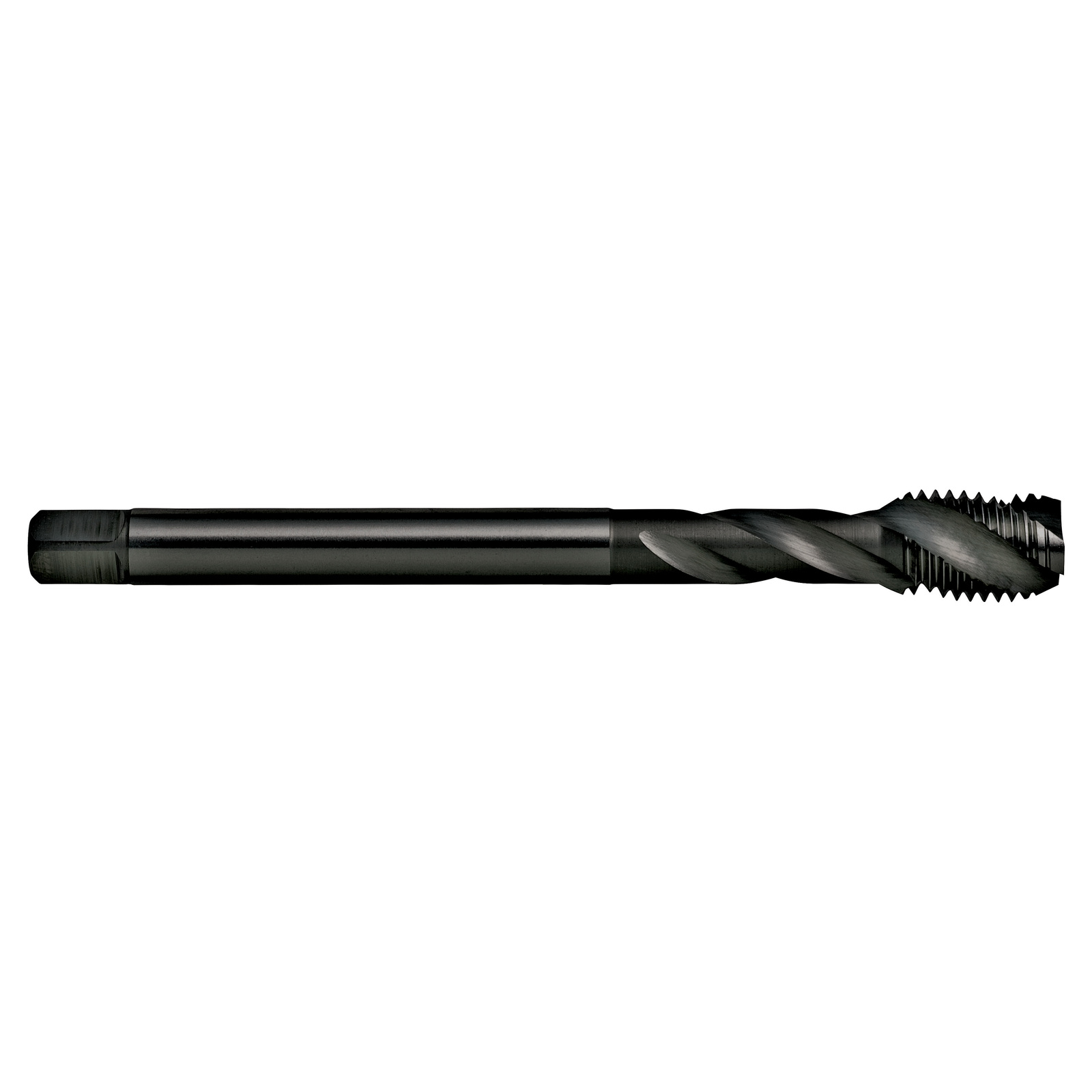

Tap T247 MF 10x1.25 6H Spiral R40 N Din374 C HSSE Blu Sutton T2471006

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Blind holes
• Suitable for machine operations
• Depths up to approx. 2.5 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 2.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R40
• X: als
• Type: Spiral Flute
• Standard: DIN374
• Thread Form: ISO Metric Fine (MF)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Part Number/SKU: T2471006

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
