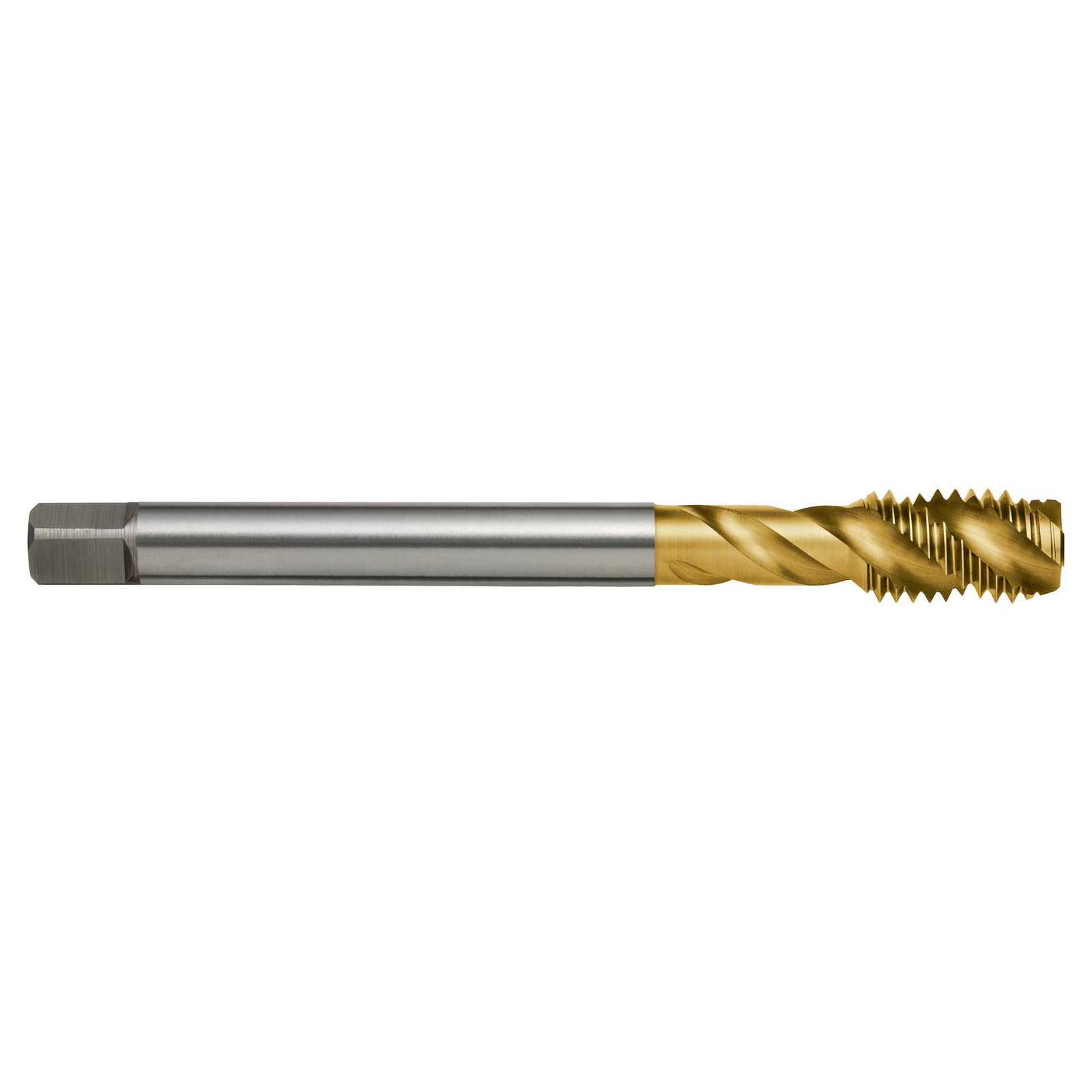

TAP T242 M 12x1.75 6H SPIRAL R45 W DIN376 C HSSE TiN T2421200

Features

• Suitable for use in soft materials
• CrN for copper and non-ferrous materials
• Blind holes
• Depths up to 3 x d1

Specifications

• Designation: W (for soft materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R45
• X: als
• Type: Spiral Flute
• Standard: DIN376
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed
• Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Part Number/SKU: T2421200
