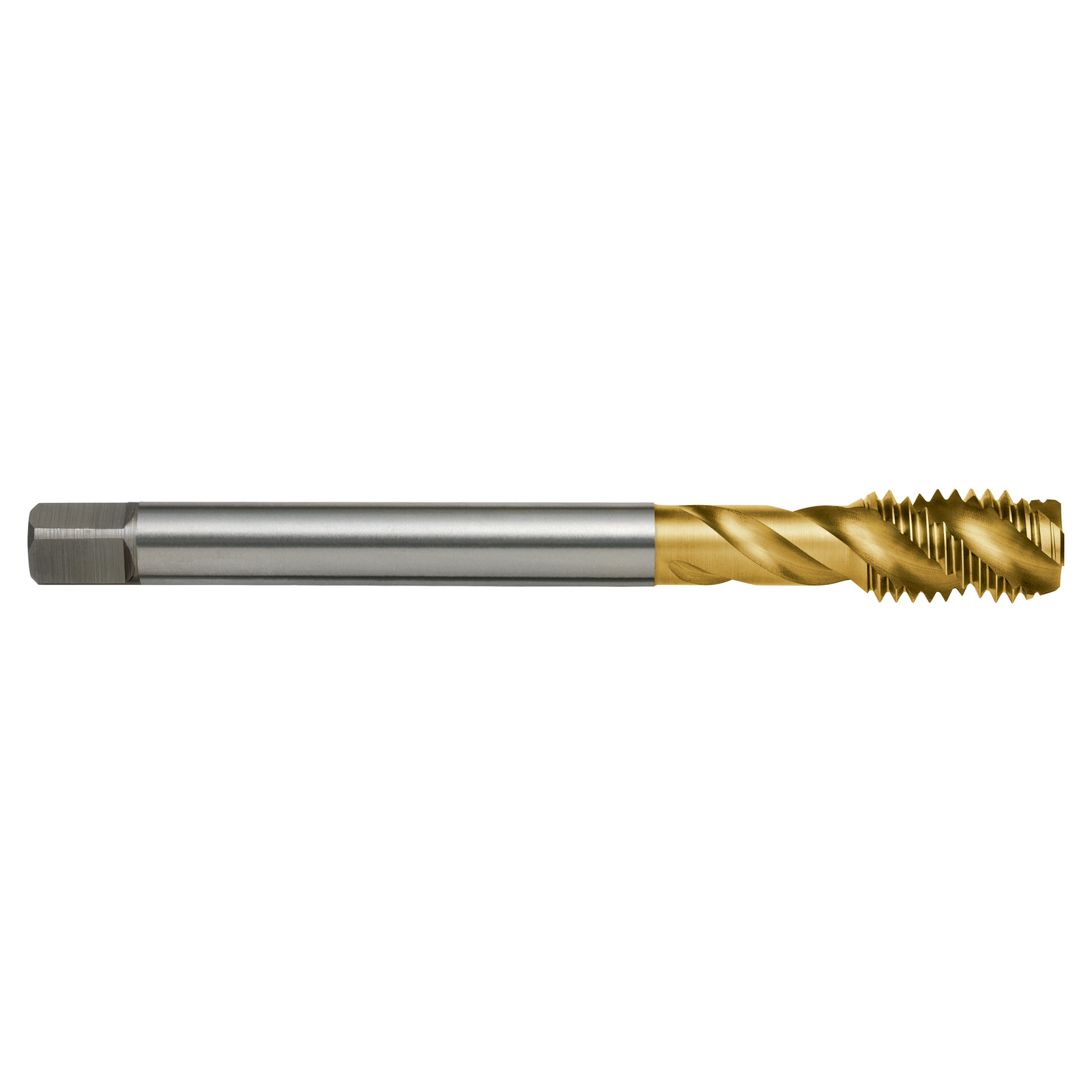

TAP T242 M 10x1.5 6H SPIRAL R45 W DIN376 C HSSE TiN T2421000



Features

  • Suitable for use in soft materials
  • CrN for copper and non-ferrous materials
  • Blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: W (for soft materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Part Number/SKU: T2421000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2421000
Barcode # 9311963401119
Brand Sutton Tools
Shipping Weight 0.0340kg
Shipping Width 0.014m
Shipping Height 0.014m
Shipping Length 0.140m
Shipping Cubic 0.000027000m3
