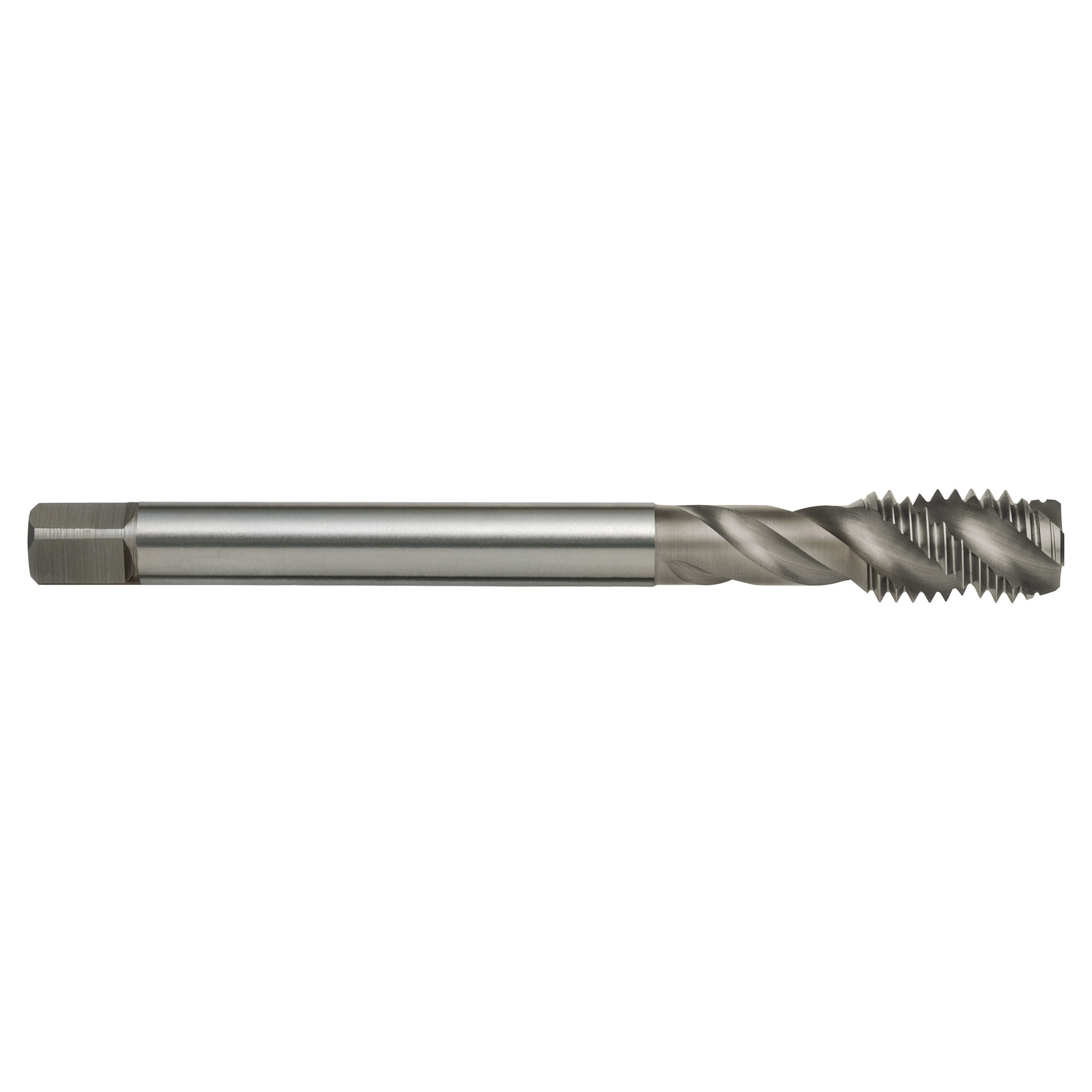

Tap T236 M 8x1.25 6H Spiral R45 W Din376 C HSSE Ni Sutton T2360800

Features

• Suitable for use in soft materials
• CrN for copper and non-ferrous materials
• Blind holes
• Depths up to 3 x d1

Specifications

• Designation: W (for soft materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Plasma Nitride (Ni)
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R45
• X: als
• Type: Spiral Flute
• Standard: DIN376
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Part Number/SKU: T2360800

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
