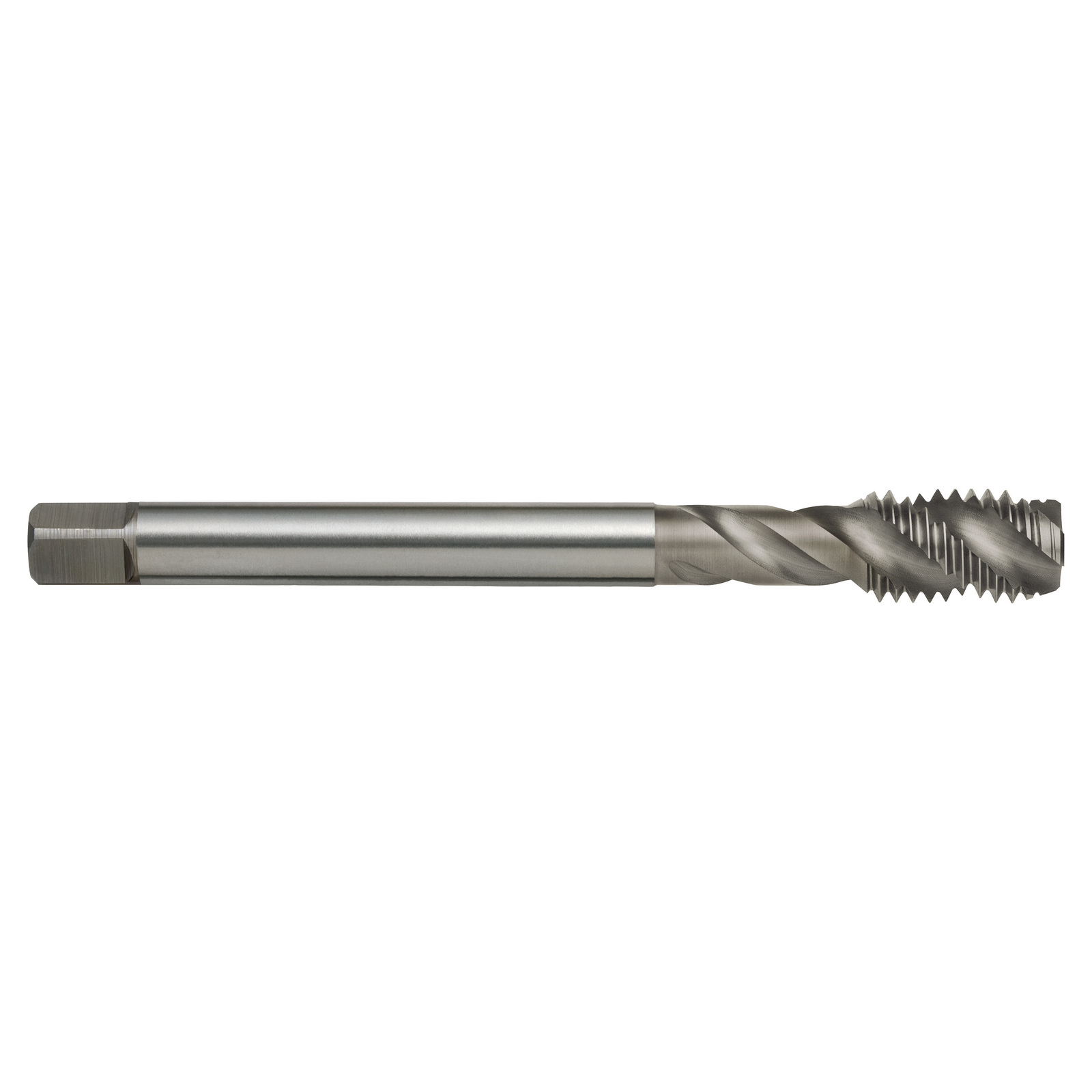

Tap T236 M 20x2.5 6H Spiral R45 W DIN376 C HSSE Ni Sutton T2362000



Features

  • Suitable for use in soft materials
  • CrN for copper and non-ferrous materials
  • Blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: W (for soft materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Plasma Nitride (Ni)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable

Part Number/SKU: T2362000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2362000
Barcode # 9311963393094
Brand Sutton Tools
Shipping Weight 0.2010kg
Shipping Width 0.030m
Shipping Height 0.026m
Shipping Length 0.140m
Shipping Cubic 0.000109200m3
