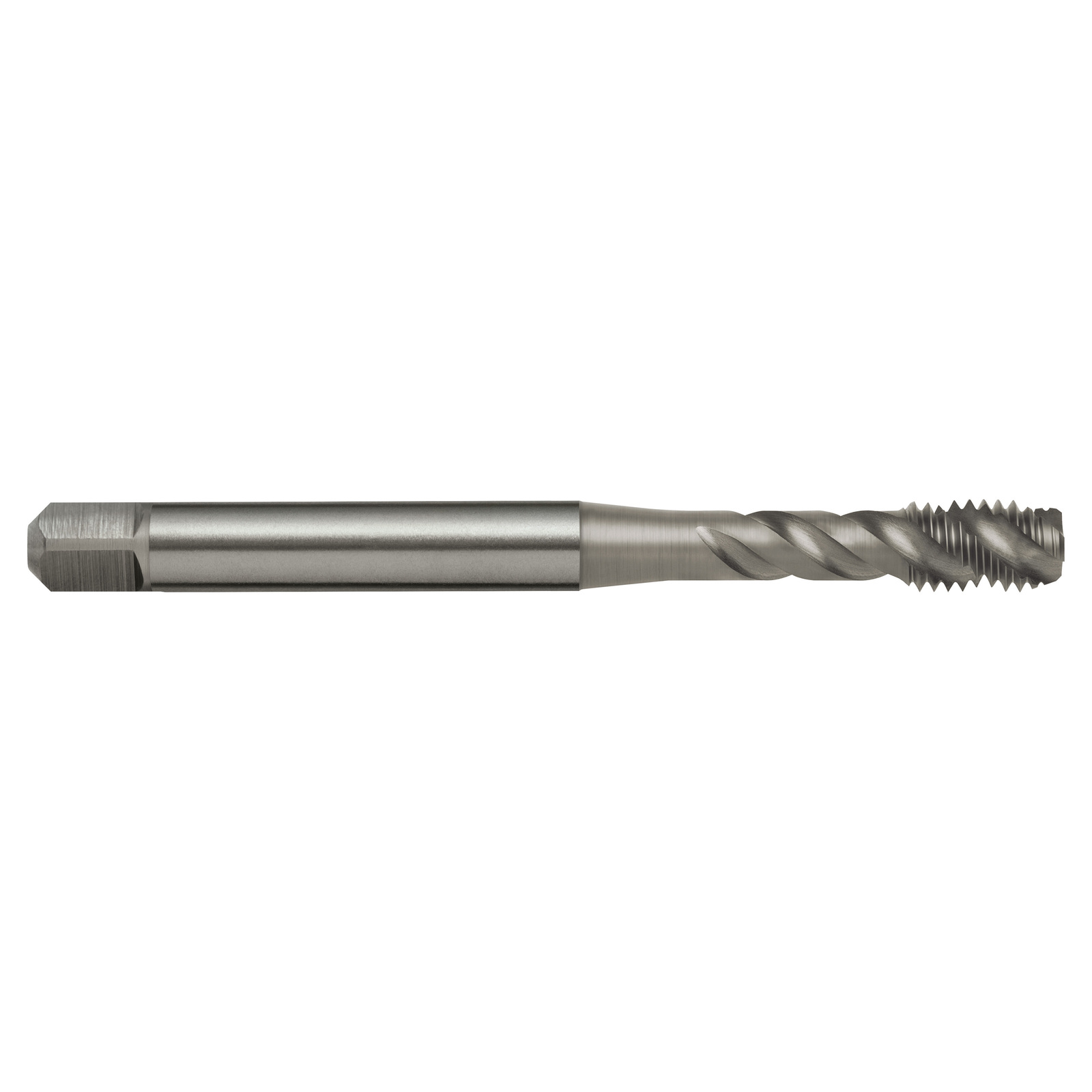

Tap T235 M 6x1 6H Spiral R45 W Din371 C HSSE Ni Sutton T2350600



Features

  • Suitable for use in soft materials
  • CrN for copper and non-ferrous materials
  • Blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: W (for soft materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Plasma Nitride (Ni)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T2350600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2350600
Barcode # 9311963102054
Brand Sutton Tools
Shipping Weight 0.0200kg
Shipping Width 0.015m
Shipping Height 0.013m
Shipping Length 0.116m
Shipping Cubic 0.000023000m3
