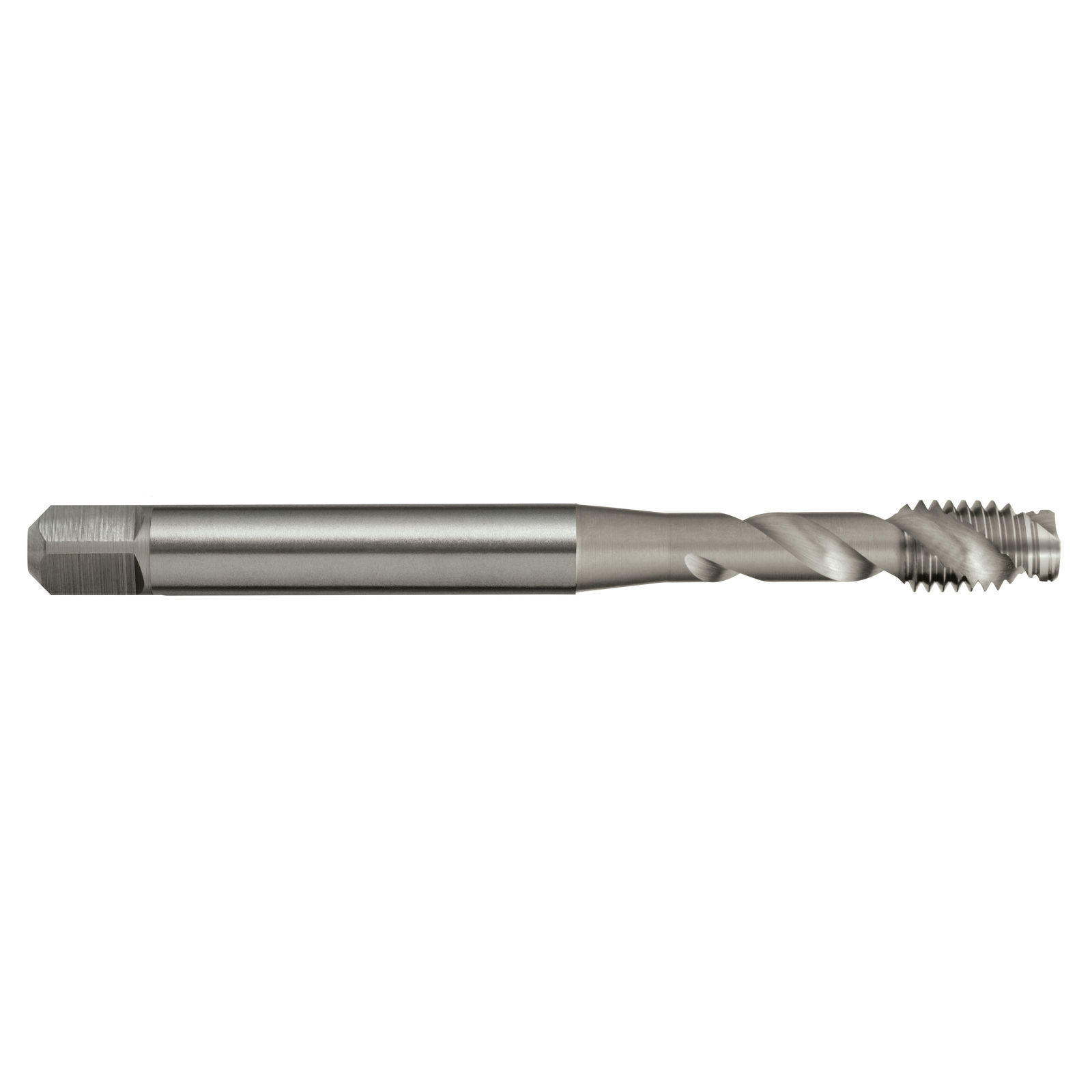

Tap T231 M 4x0.7 6H Spiral R45 AL DIN371 C HSSE Sutton T2310400

Features

• Suitable for use in wrought aluminium and low silicon aluminium
• Blind holes
• Depths up to 3 x d1
• CrN for longer tool life

Specifications

• Designation: Al (for malleable aluminum with long strips)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• Helix Angle: R45
• X: als
• Type: Spiral Flute
• Standard: DIN371
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Applications

• Aluminum & Magnesium, wrought alloy - Non Heat Treatable
• Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
• Aluminum & Magnesium, cast alloy ≤ 12% Si - Non Heat Treatable
• Aluminum & Magnesium, cast alloy ≤ 12% Si - Heat Treatable: Age Hardened

Part Number/SKU: T2310400
