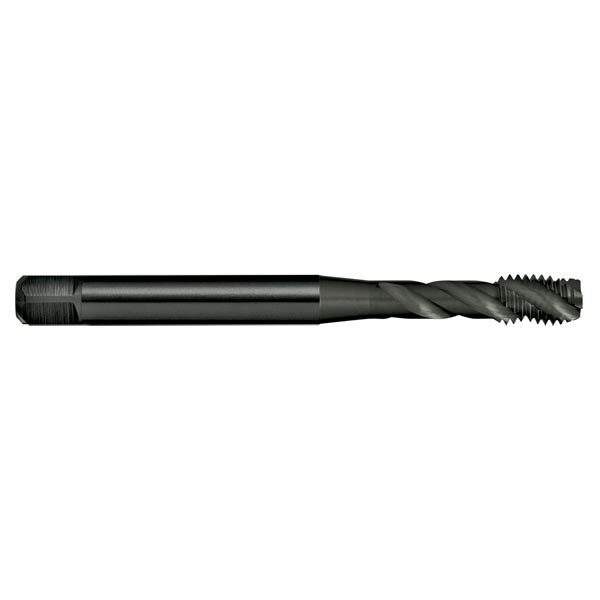

Tap T221 M 10x1.5 6H Spiral R40 NH Din371 C PM-V3 Blu Sutton T2211000



Features

  • Suitable for harder short chipping materials up to 42 HRc
  • Blind holes
  • Depths up to 2.5 x d1

Specifications

  • Designation: NH
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T2211000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2211000
Barcode # 9311963412139
Brand Sutton Tools
Shipping Weight 0.0520kg
Shipping Width 0.015m
Shipping Height 0.013m
Shipping Length 0.116m
Shipping Cubic 0.000023000m3
