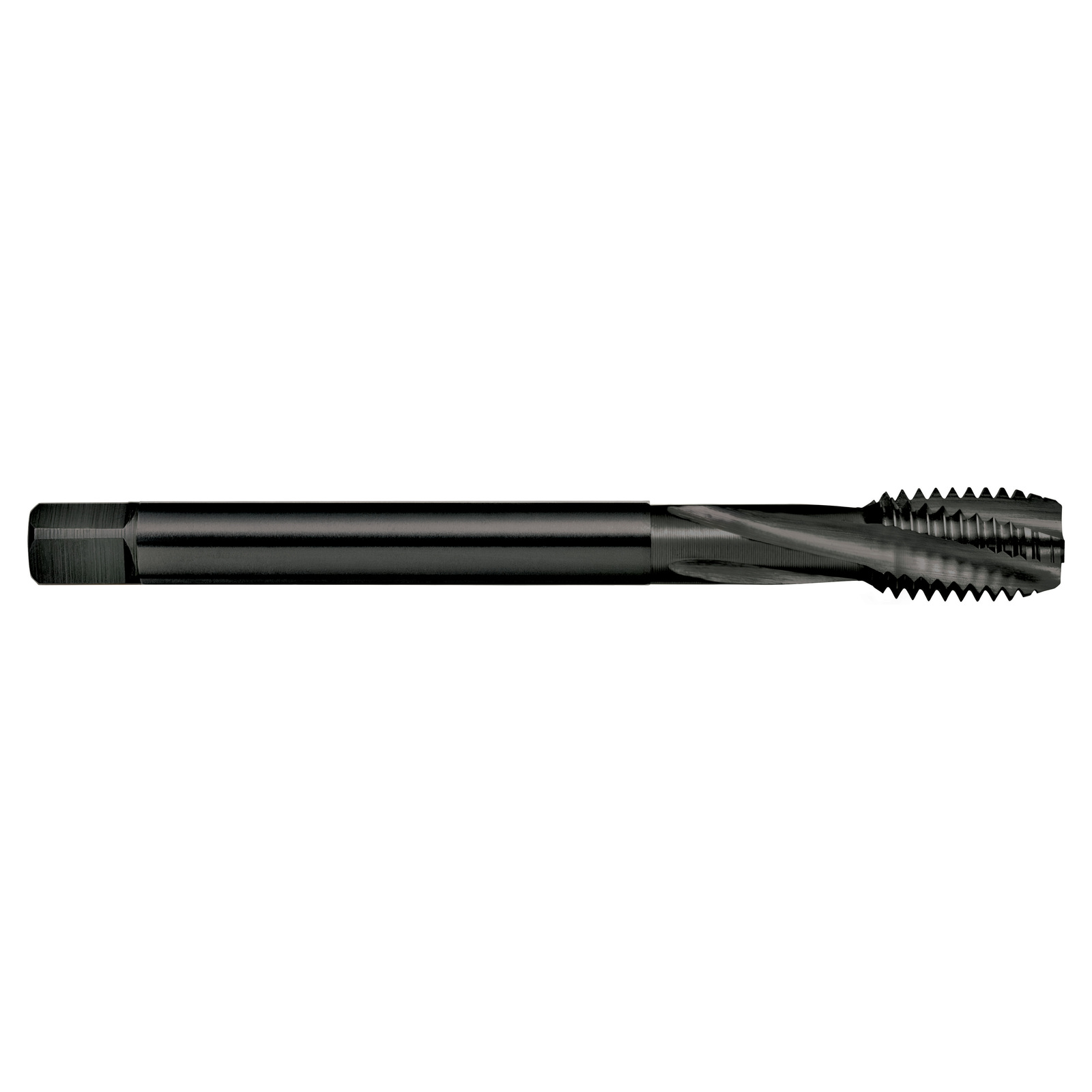

Tap T210 M 20x2.5 6HX Spiral R15 H Din376 C PM-Co. Blu Sutton T2102000

Features

• Suitable for harder short chipping materials up to 45 HRc
• Blind holes
• Depths up to 1.5 x d1

Specifications

• Designation: H (for hard materials forming short chips)
• Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 1.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R15
• X: als
• Type: Spiral Flute
• Standard: DIN376
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6HX
• Lead: Form C / 3 x P

Part Number/SKU: T2102000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
