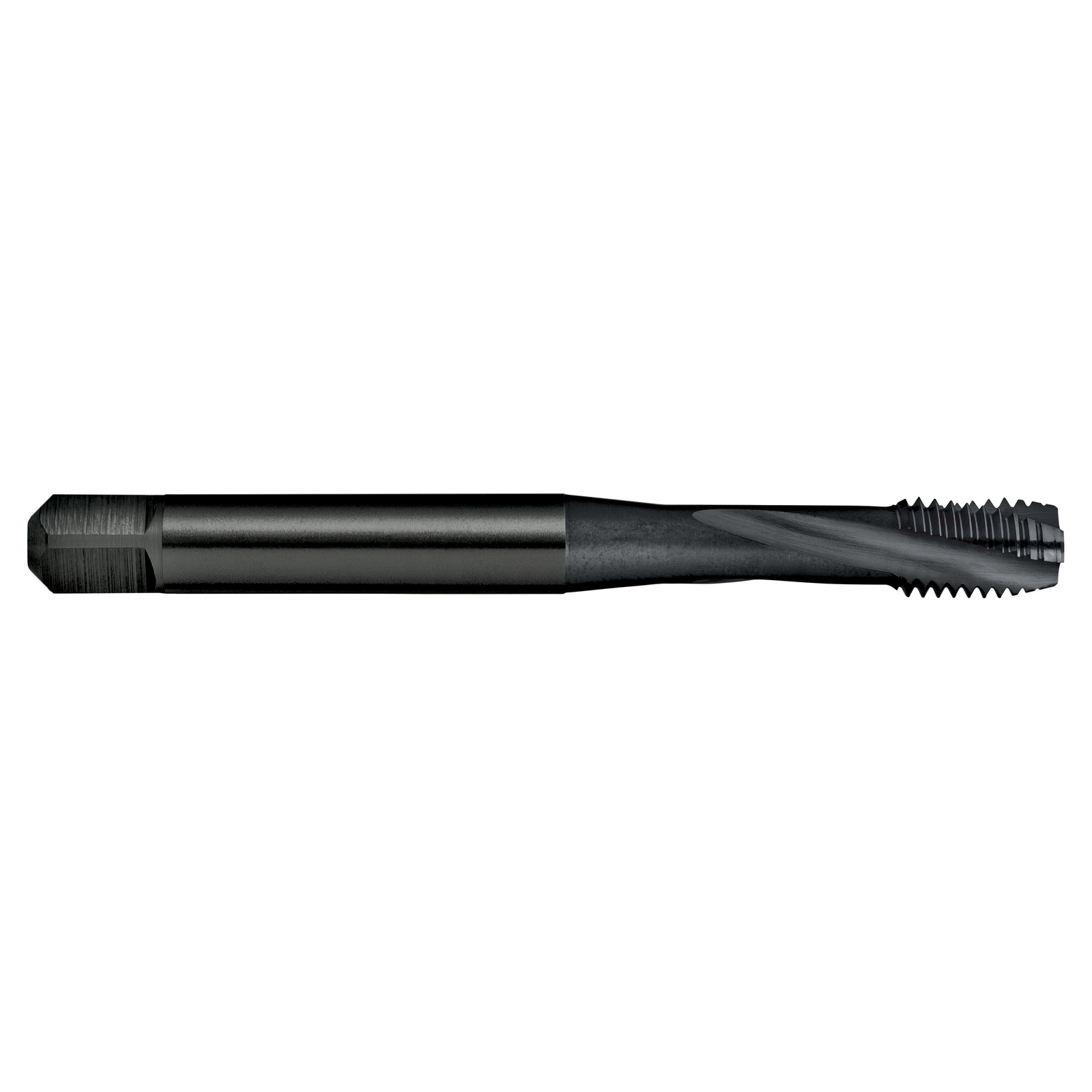

Tap T209 M 4x0.7 6HX Spiral R15 H Din371 C PM-Co. Blu Sutton T2090400



Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Blind holes
  • Depths up to 1.5 x d1

Specifications

  • Designation: H (for hard materials forming short chips)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R15
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6HX
  • Lead: Form C / 3 x P

Part Number/SKU: T2090400

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2090400
Barcode # 9311963399461
Brand Sutton Tools
Shipping Weight 0.0060kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.081m
Shipping Cubic 0.000008000m3
