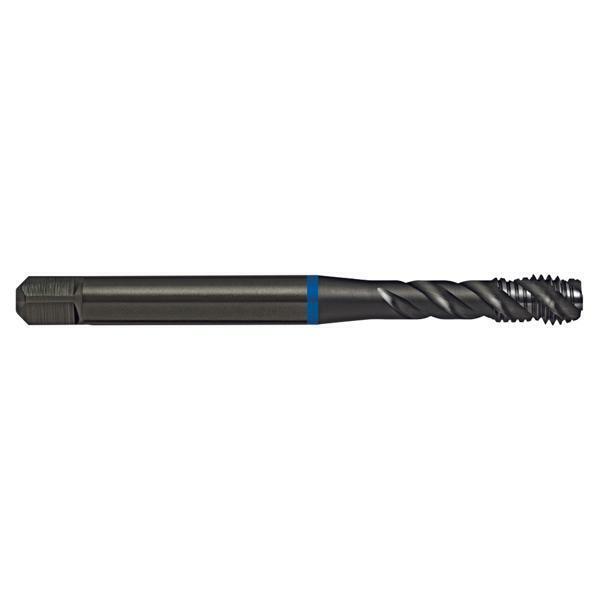

Tap T197 M 3x0.5 6H Spiral R45 VA-DH Din371 C HSSE Blu Sutton T1970300



Features

  • Suitable for controlled tapping in deep holes
  • Use in stainless steels and high strength steels up to 850N/mm2
  • Blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T1970300

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1970300
Barcode # 9311963091631
Brand Sutton Tools
Shipping Weight 0.0050kg
Shipping Width 0.001m
Shipping Height 0.001m
Shipping Length 0.008m

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review
