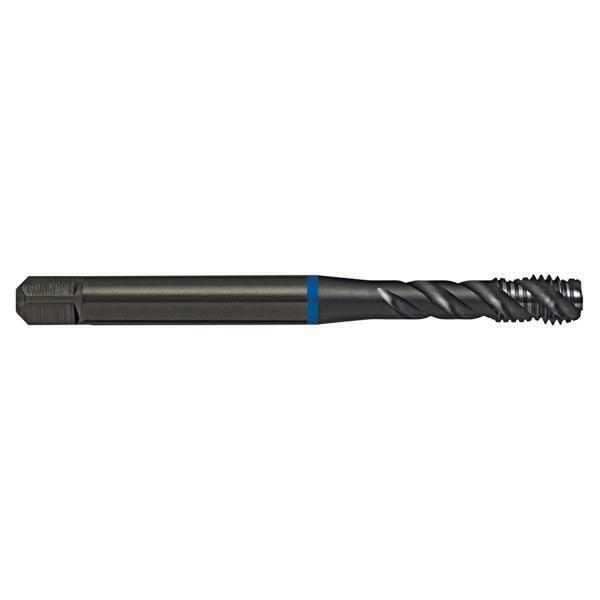

Tap T197 M 10x1.5 6H Spiral R45 VA-DH Din371 C HSSE Blu Sutton T1971000



Features

  • Suitable for controlled tapping in deep holes
  • Use in stainless steels and high strength steels up to 850N/mm2
  • Blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T1971000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1971000
Barcode # 9311963095400
Brand Sutton Tools
Shipping Weight 0.0160kg
Shipping Width 0.001m
Shipping Height 0.001m
Shipping Length 0.012m
