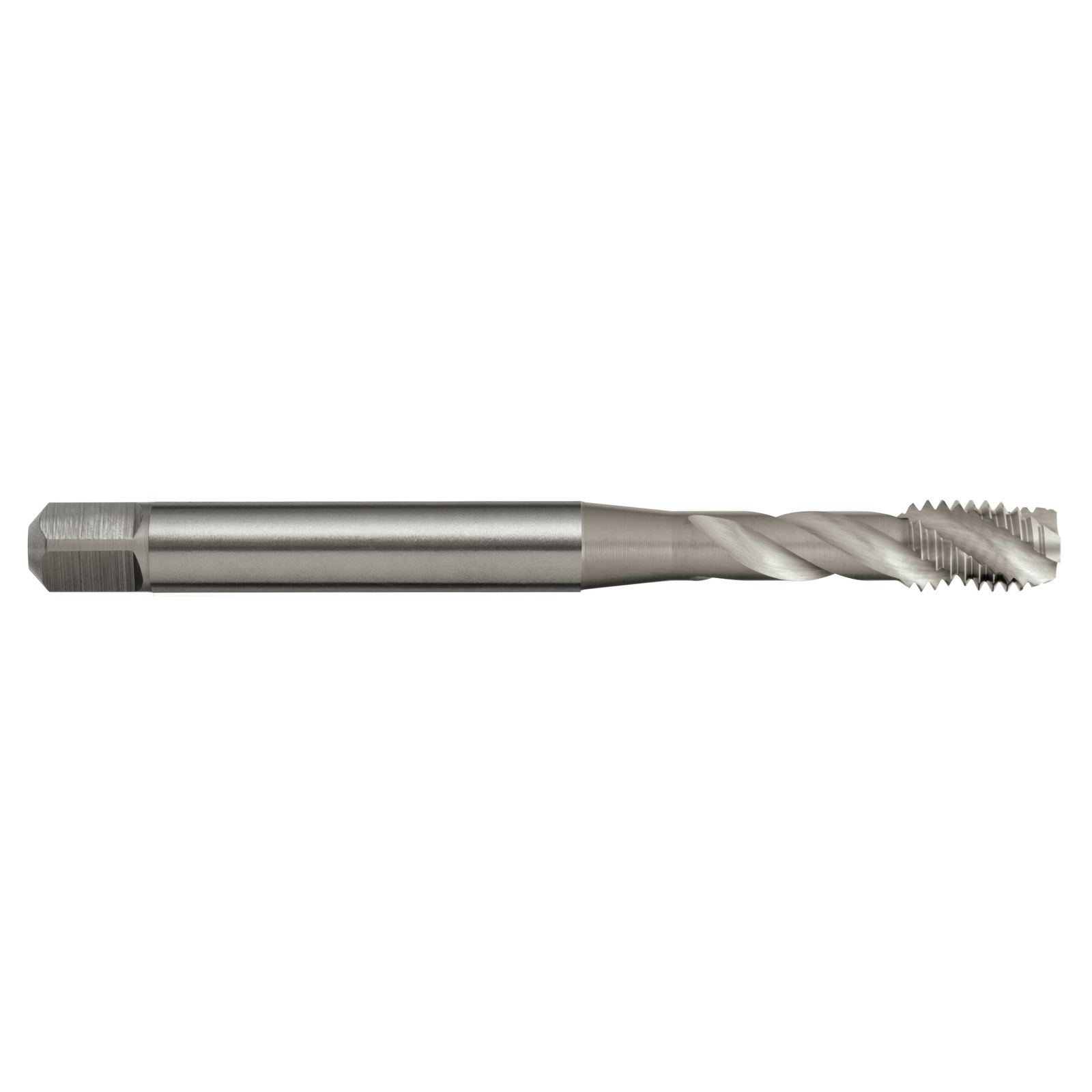

Tap T193 M 6x1 4H Spiral R40 N Din371 C HSSE Sutton T1930600

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Blind holes
• Depths up to 2.5 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 2.5xD
• Shank Form: Reinforced Shank (with square drive)
• Helix Angle: R40
• X: als
• Type: Spiral Flute
• Standard: DIN371
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 1 / 4H
• Lead: Form C / 3 x P

Part Number/SKU: T1930600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
