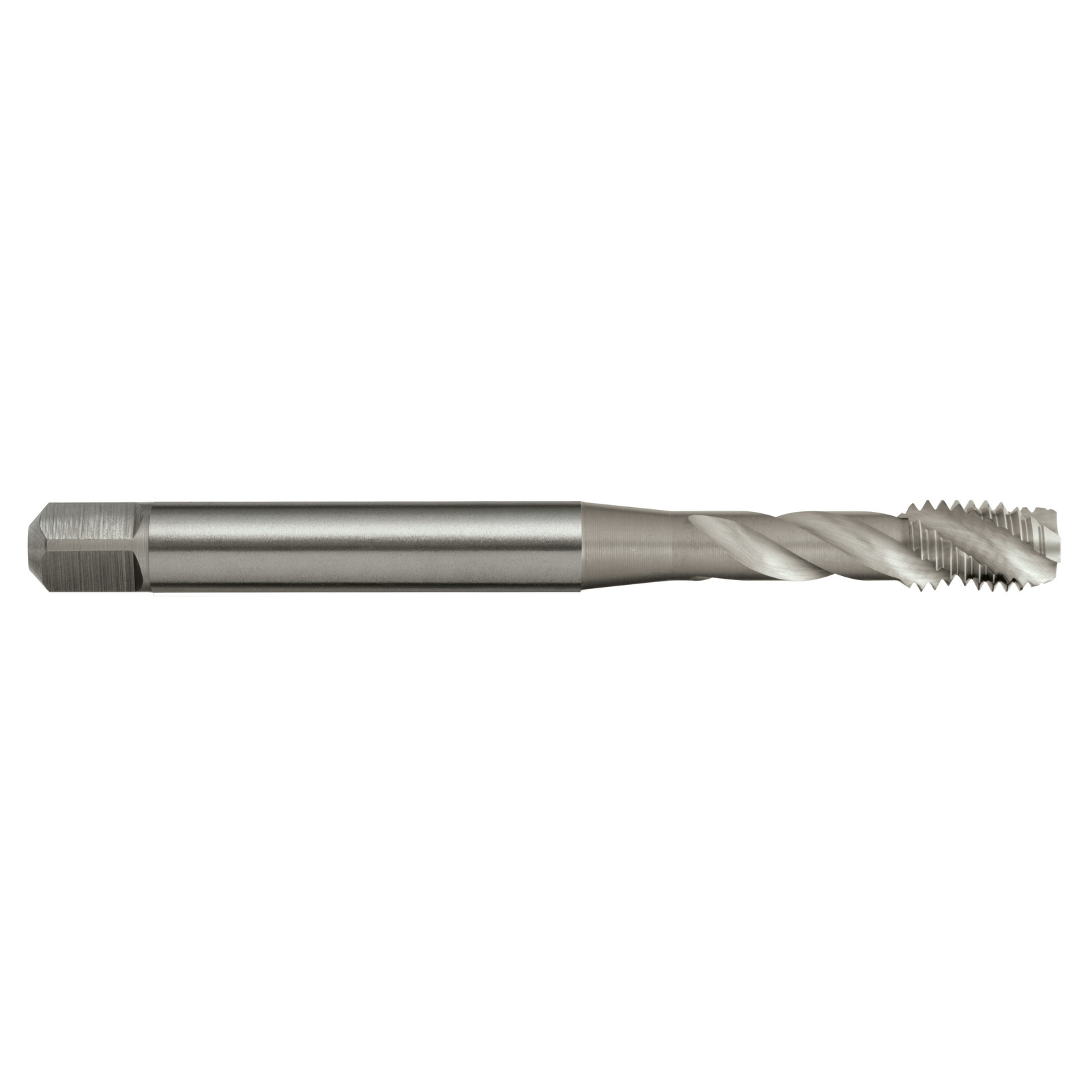

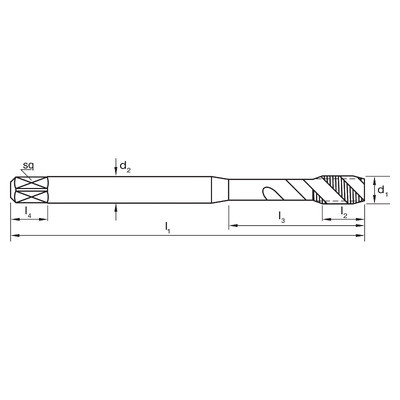

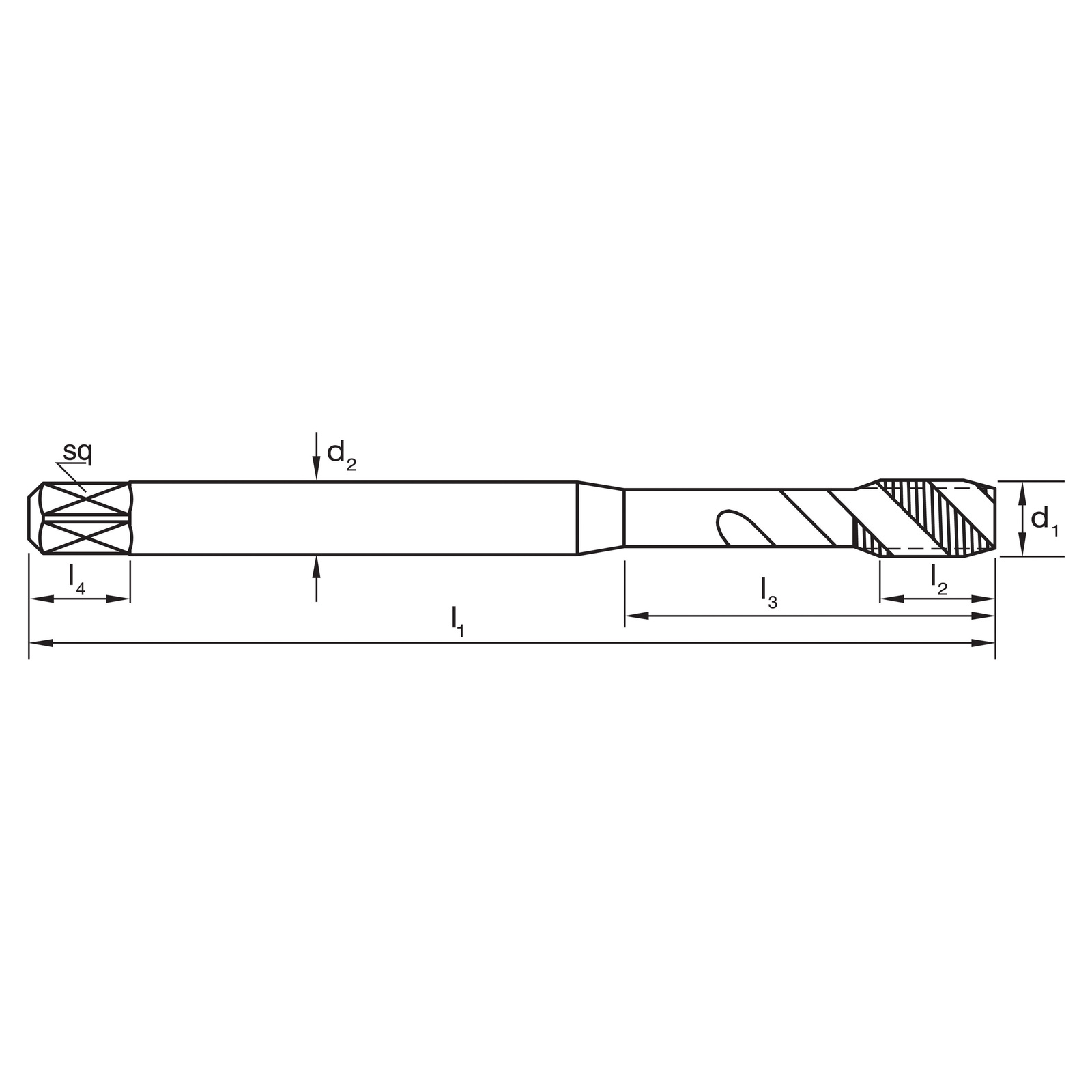

Tap T193 M 5x0.8 4H Spiral R40 N DIN371 C HSSE Sutton T1930500



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 1 / 4H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Part Number/SKU: T1930500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1930500
Barcode # 9311963399096
Brand Sutton Tools
Shipping Weight 0.0170kg
Shipping Width 0.009m
Shipping Height 0.008m
Shipping Length 0.094m
Shipping Cubic 0.000007000m3
