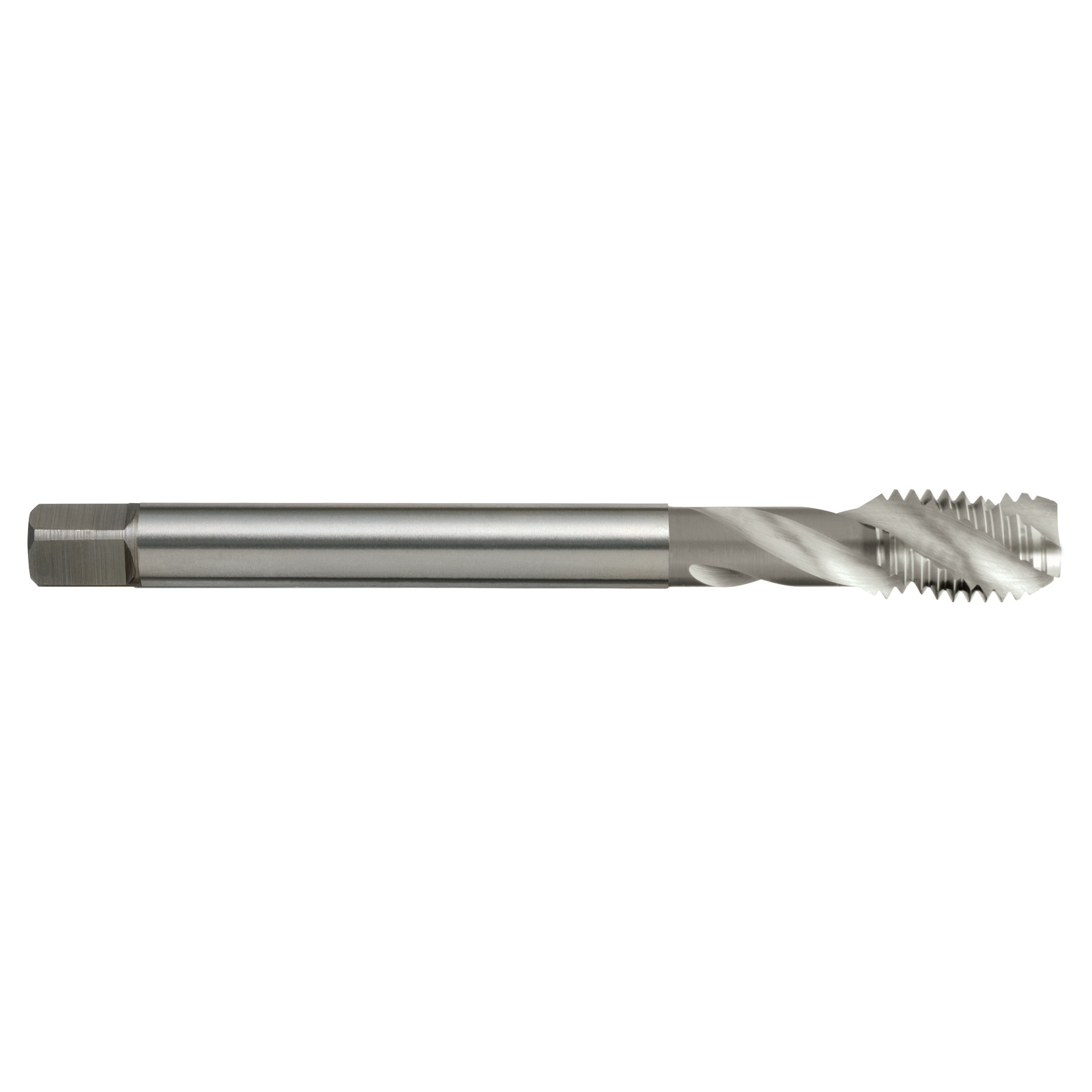

Tap T188 M 3.5x0.6 6H Spiral R40 N DIN376 C HSSE Sutton T1880350

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Blind holes
• Depths up to 2.5 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 2.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R40
• X: als
• Type: Spiral Flute
• Standard: DIN376
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed
• Aluminum & Magnesium, wrought alloy - Non Heat TreatableAluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Part Number/SKU: T1880350
