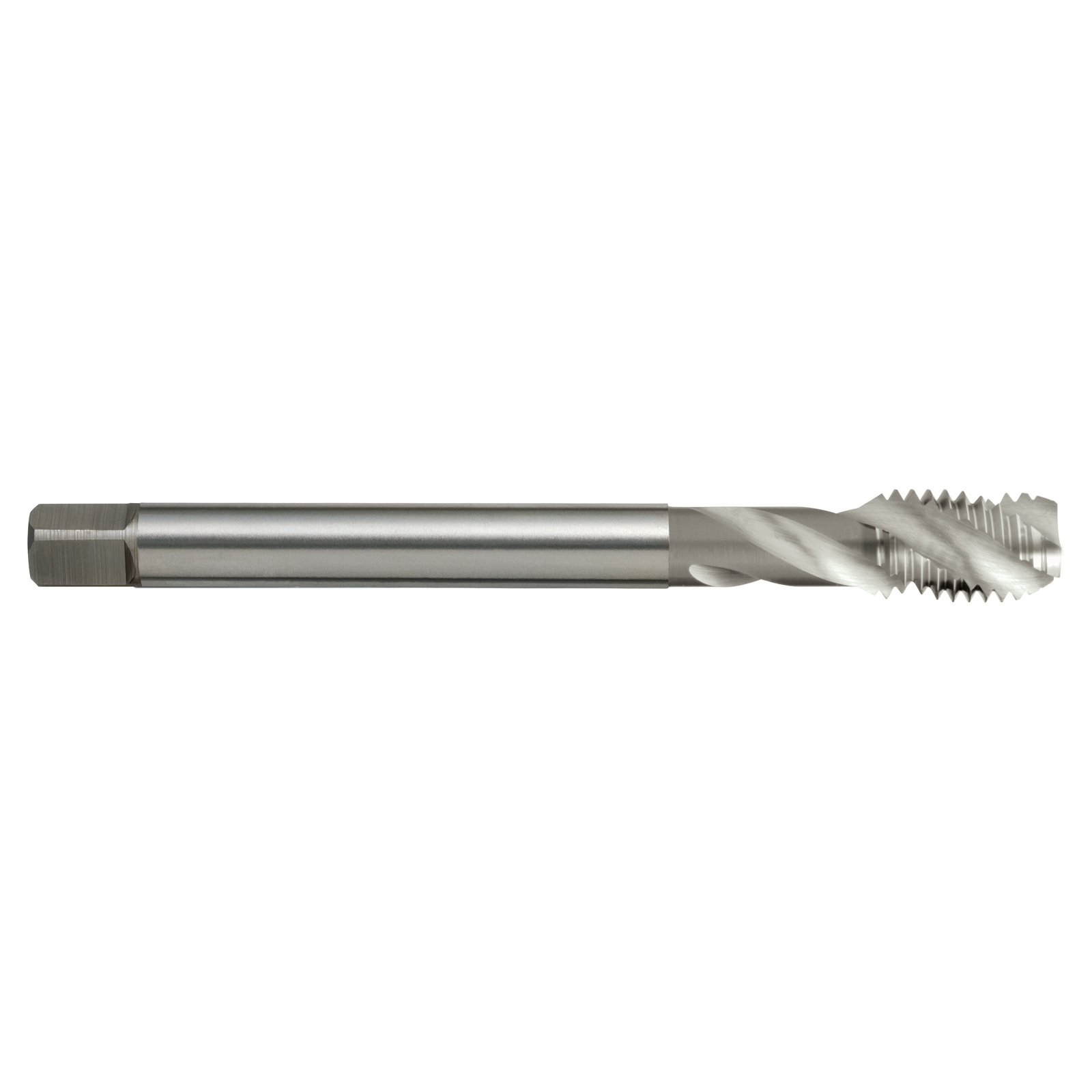

Tap T188 M 14x2 6H Spiral R40 N DIN376 C HSSE Sutton T1881400



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T1881400

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1881400
Barcode # 9311963128375
Brand Sutton Tools
Shipping Weight 0.0760kg
Shipping Width 0.018m
Shipping Height 0.018m
Shipping Length 0.011m
Shipping Cubic 0.000004000m3
