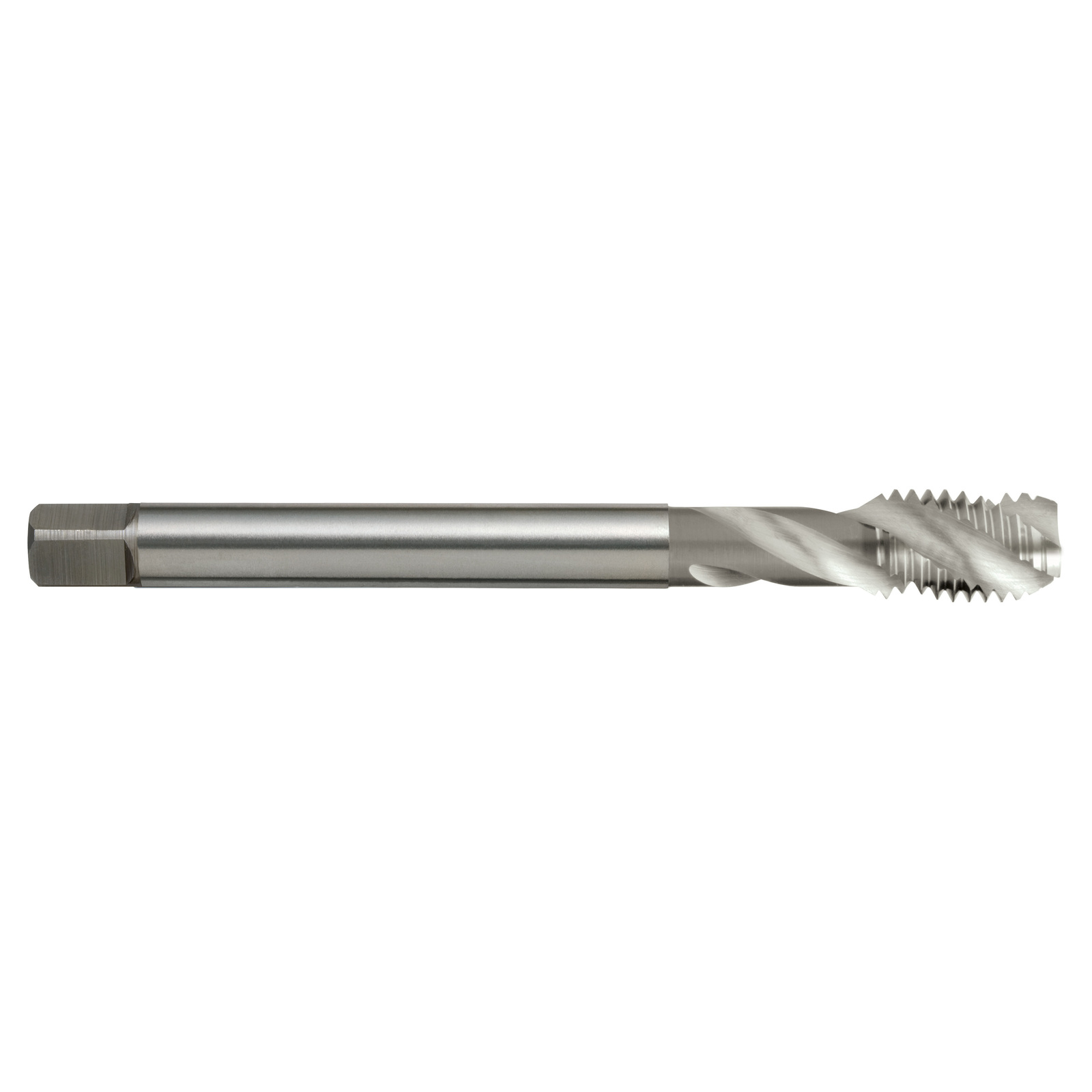

Tap T188 M 10x1.5 6H Spiral R40 N DIN376 C HSSE Sutton T1881000

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Blind holes
• Depths up to 2.5 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 2.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R40
• X: als
• Type: Spiral Flute
• Standard: DIN376
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Part Number/SKU: T1881000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
