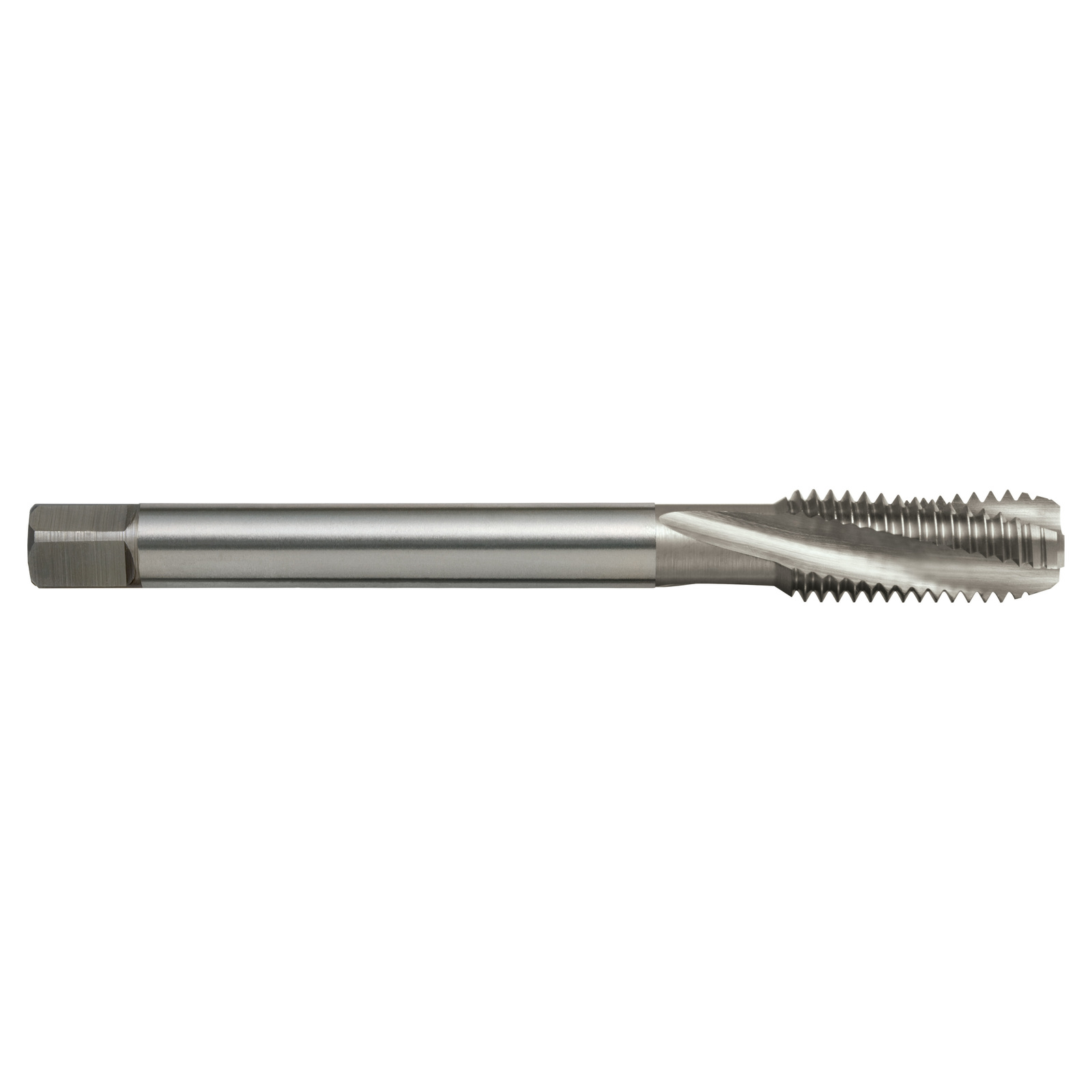

Tap T184 M 14x2 6H Spiral R15 N Din376 C HSSE Sutton T1841400

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Blind holes
• Depths up to 1.5 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 1.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R15
• X: als
• Type: Spiral Flute
• Standard: DIN376
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Part Number/SKU: T1841400
