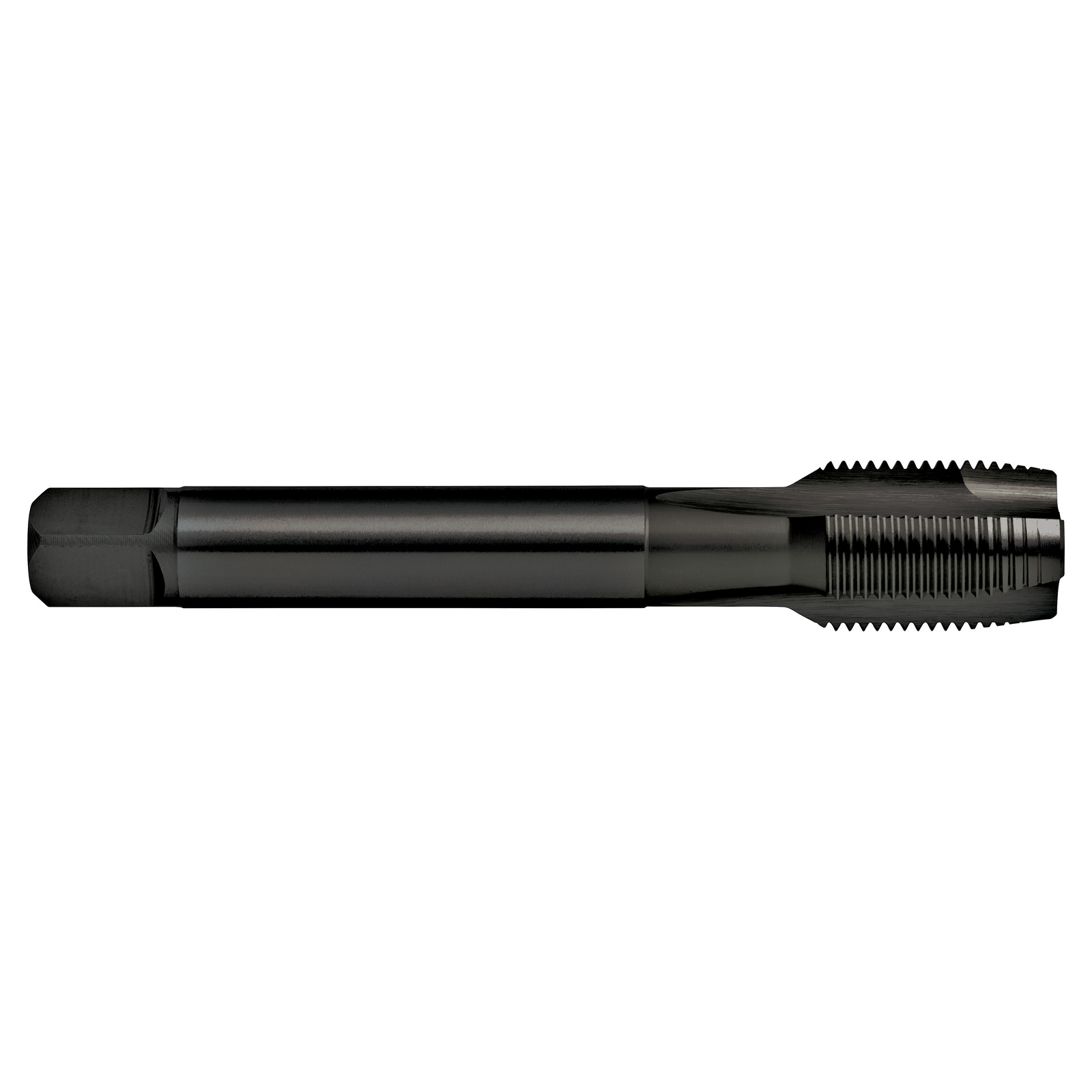

Tap T181 G 1/2-14 (BSPF) Gun VA Din5156 B HSSE Blu Sutton T1812096

Features

• Use in stainless steels and high strength steels up to 1000N/mm2
• Through holes
• Suitable for machine operations
• Depths up to approx. 3 x d1

Specifications

• Designation: VA (for stainless and tough steels)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN5156
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Nut Tolerance: ISO 228
• Lead: Form B / 4.5 x P

Part Number/SKU: T1812096
