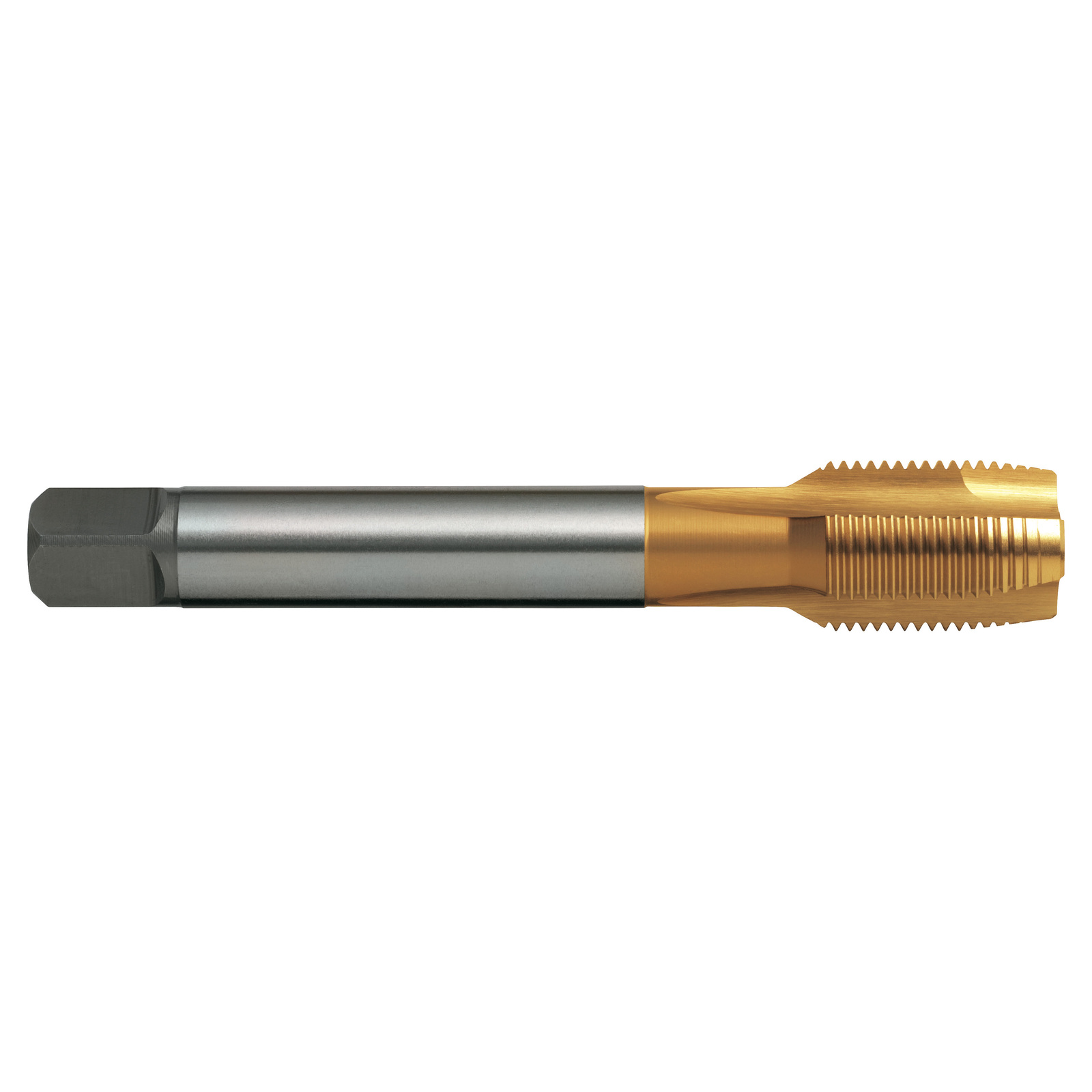

TAP T180 G 1/8-28 (BSPF) GUN N DIN5156 B HSSE TiN T1800973

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Through holes
• Suitable for machine operations
• Depths up to 3 x d1

Specifications

• Designation: N (for normal and general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 3xD

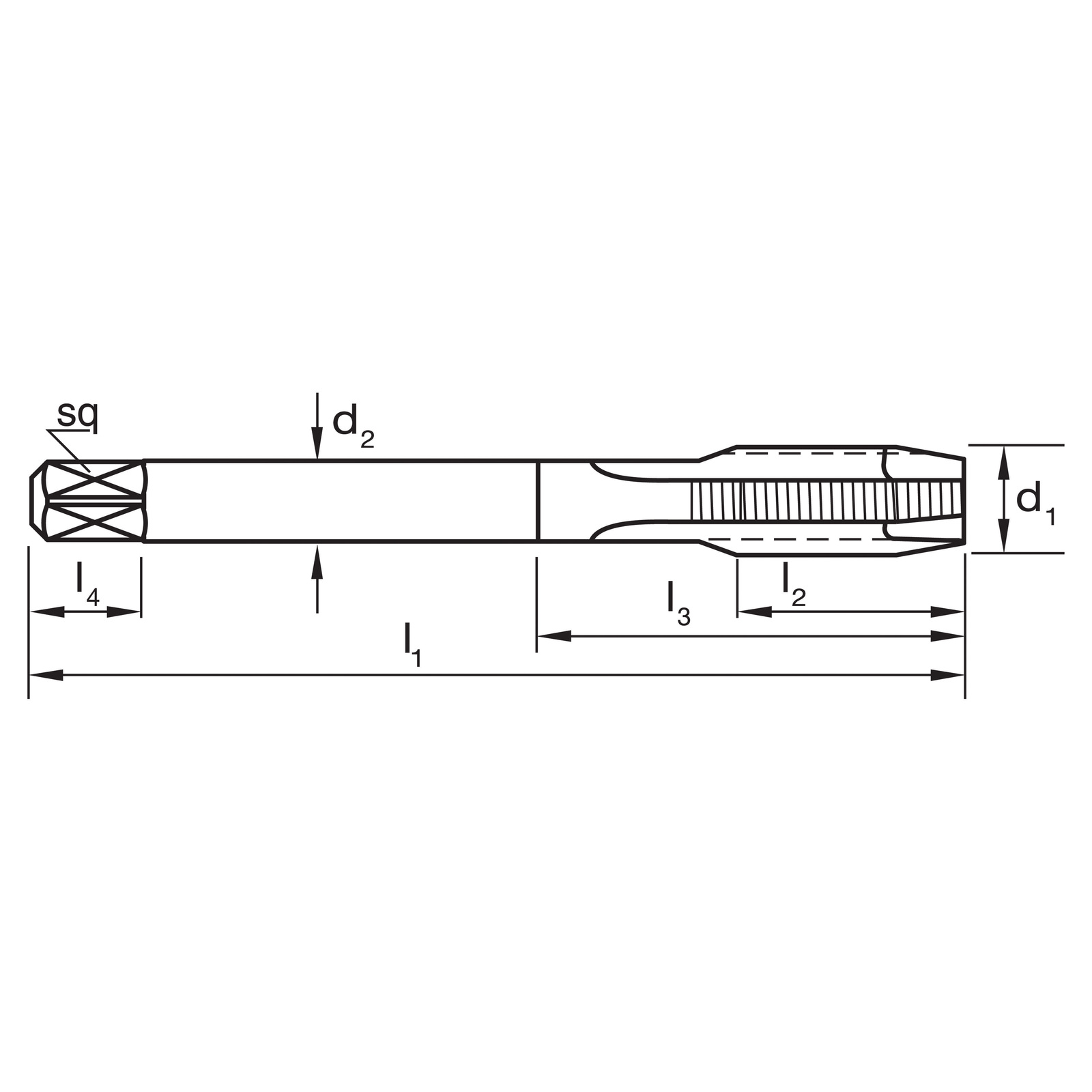

• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN5156
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Nut Tolerance: ISO 228
• Lead: Form B / 4.5 x P

Part Number/SKU: T1800973
