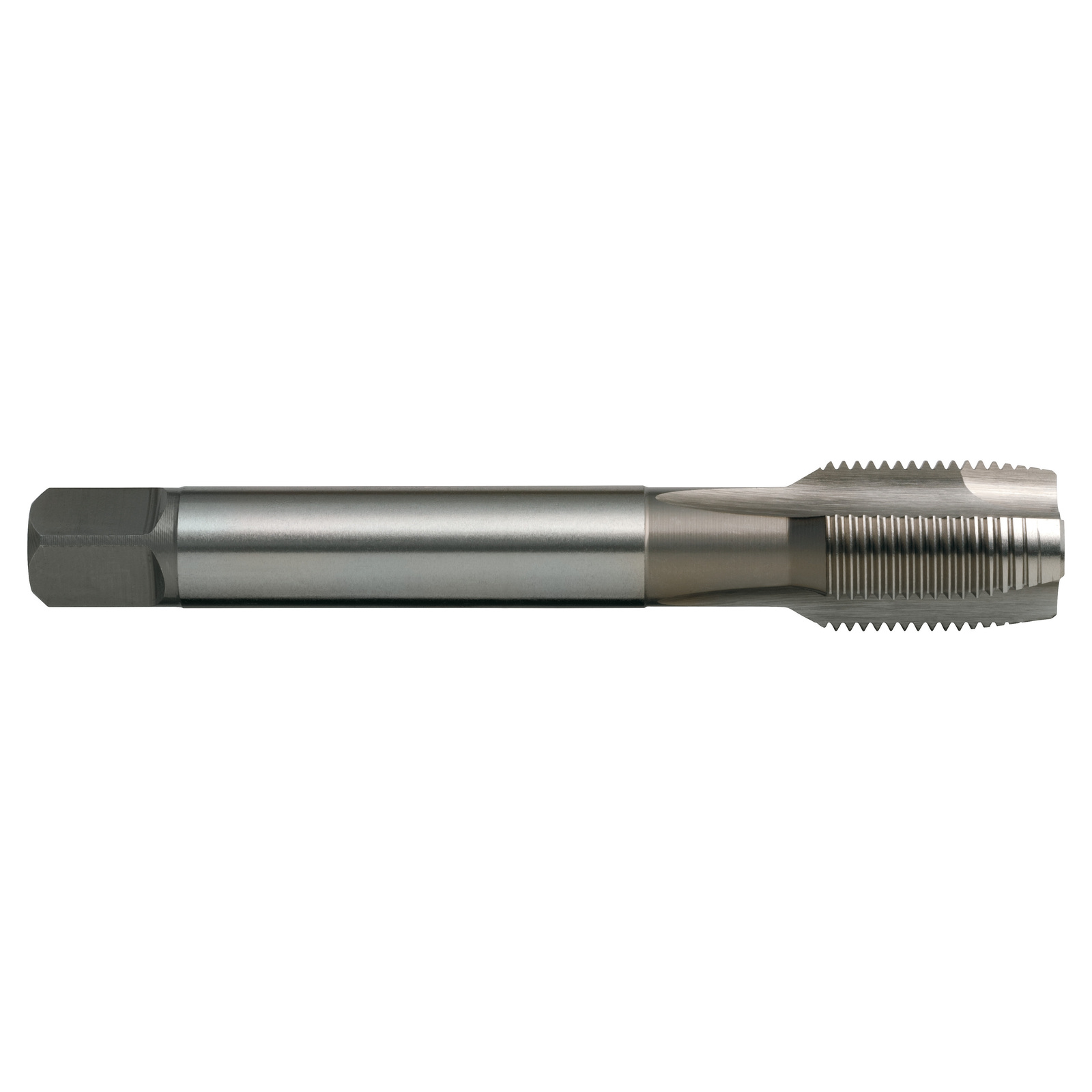

Tap T178 G 3/4-14 (BSPF) Gun N Din5156 B HSSE Sutton T1782644



Features

  • General Purpose use in materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1782644

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1782644
Barcode # 9311963160474
Brand Sutton Tools
Shipping Weight 0.3610kg
Shipping Width 0.027m
Shipping Height 0.027m
Shipping Length 0.144m
Shipping Cubic 0.000104976m3
