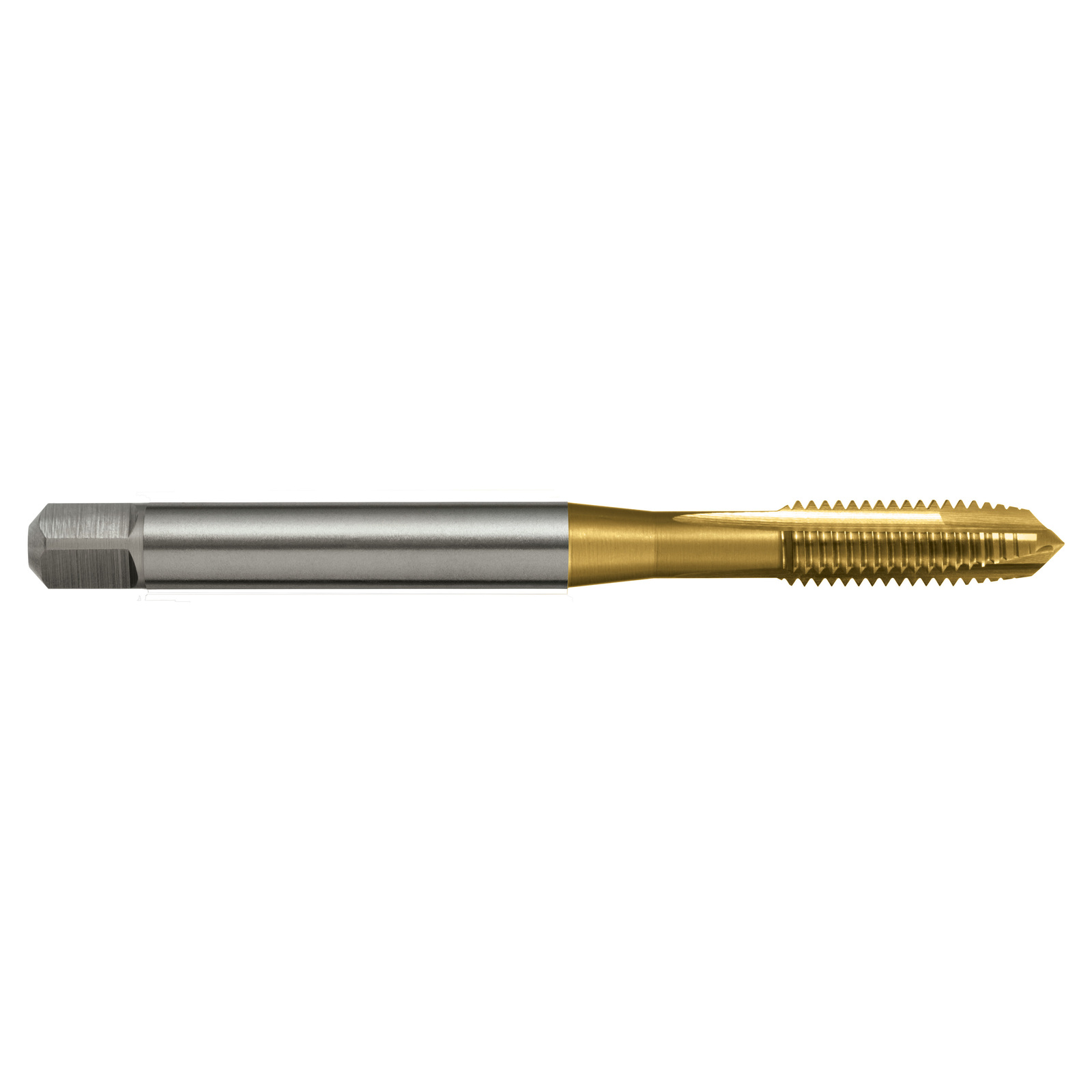

TAP T175 UNF 5/8-18 2B GUN N DIN2184-1 B HSSE TiN T1751588



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal and general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN2184-1
  • Thread Form: UNF
  • Nut Tolerance: 2B
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1751588

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1751588
Barcode # 9311963150147
Brand Sutton Tools
Shipping Weight 0.1040kg
Shipping Width 0.115m
Shipping Height 0.020m
Shipping Length 0.020m
Shipping Cubic 0.000046000m3
