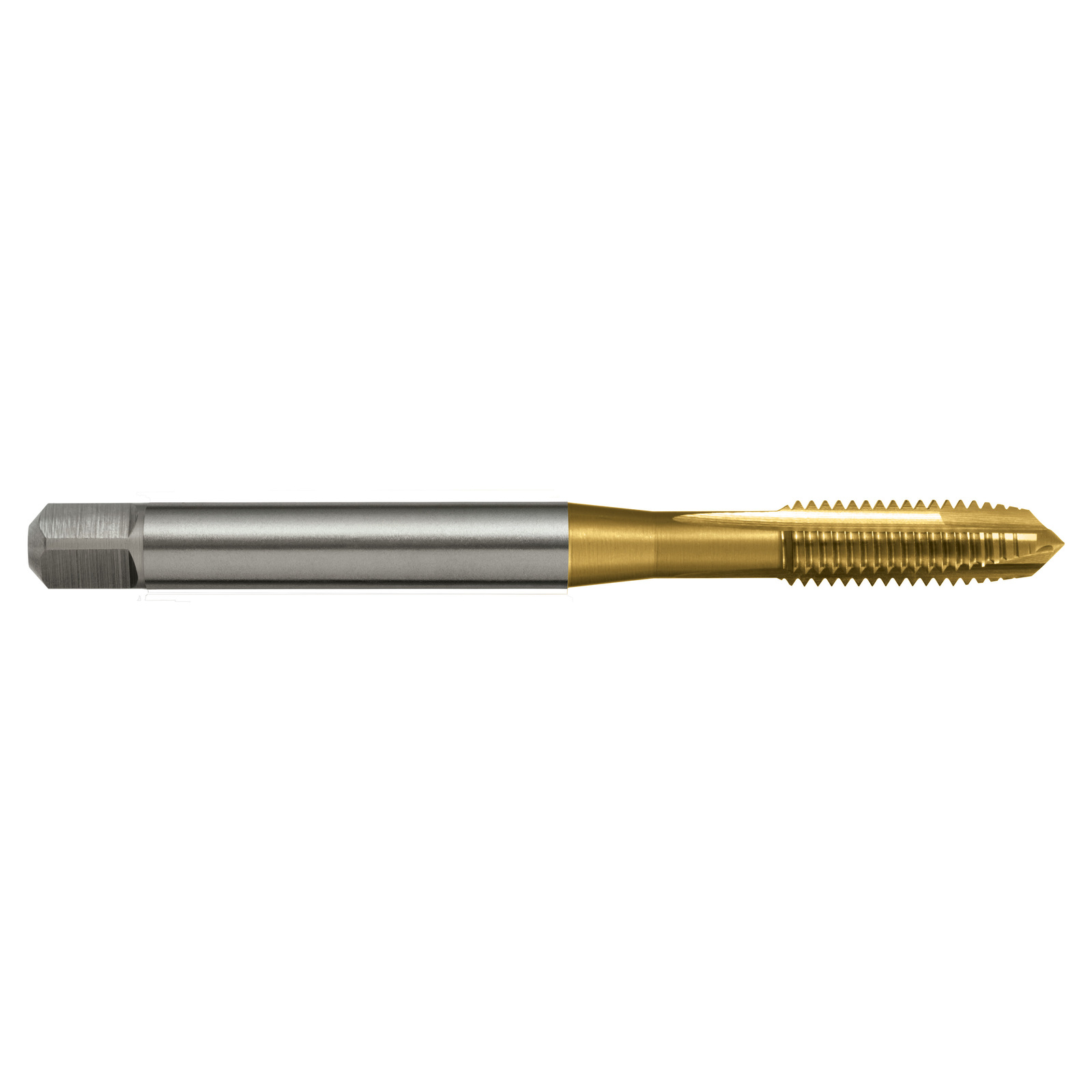

TAP T175 UNF 4-48 2B GUN N DIN2184-1 B HSSE TiN T1750284

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Through holes
• Suitable for machine operations
• Depths up to 3 x d1

Specifications

• Designation: N (for normal and general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN2184-1
• Thread Form: UNF
• Nut Tolerance: 2B
• Lead: Form B / 4.5 x P

Part Number/SKU: T1750284
