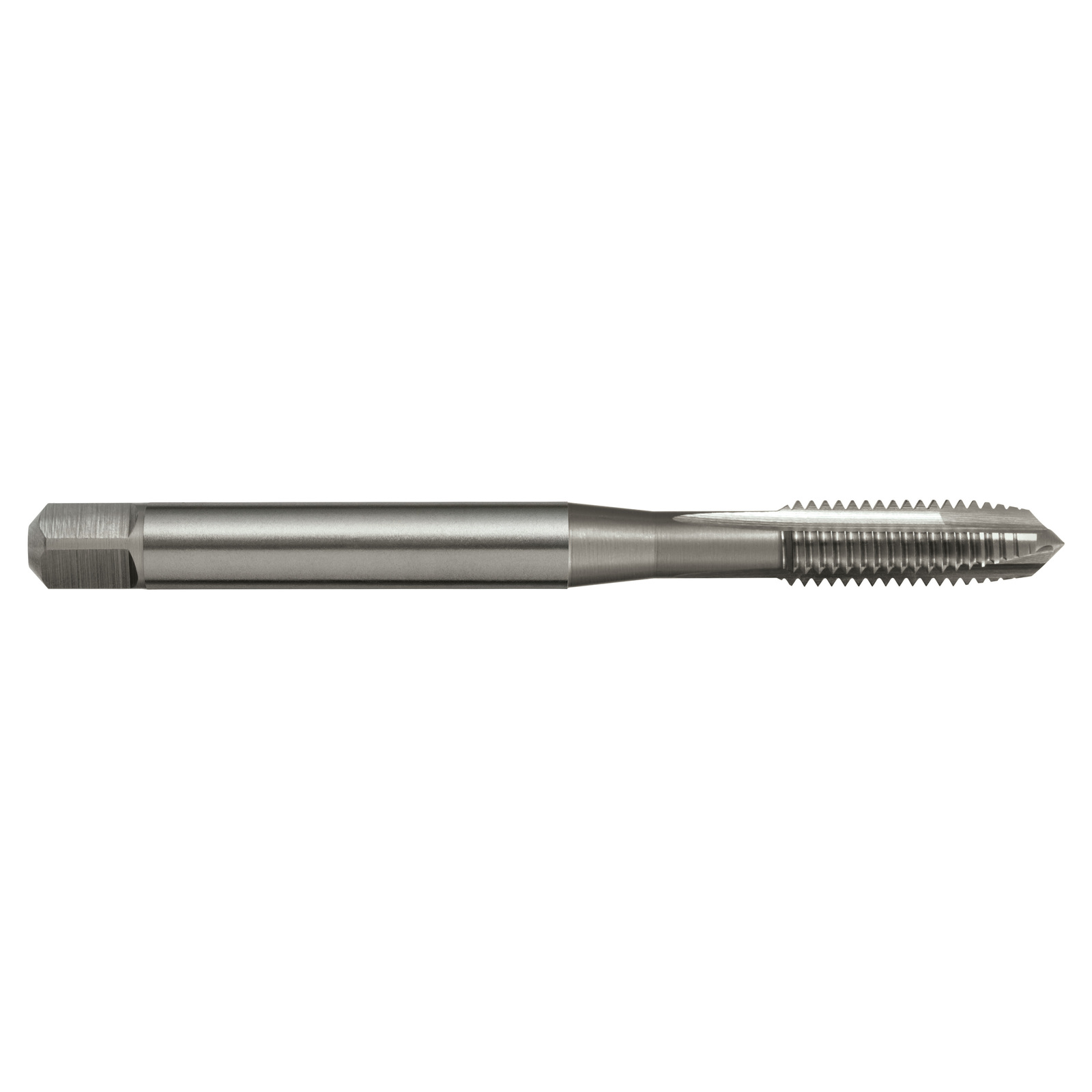

Tap T173 UNF 2-64 2B Gun N Din2184-1 B HSSE Sutton T1730218



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN2184-1
  • Thread Form: UNF
  • Nut Tolerance: 2B
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1730218

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1730218
Barcode # 9311963708621
Brand Sutton Tools
Shipping Weight 0.0040kg
Shipping Width 0.010m
Shipping Height 0.008m
Shipping Length 0.063m
Shipping Cubic 0.000005000m3

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review
