Tap T168 UNC 5/16-18 2B Gun NH Din2184-1 B PM-V3 Blu Sutton T1680794



Features

  • Use in harder short chipping materials up to 42 HRc
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: NH
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1680794

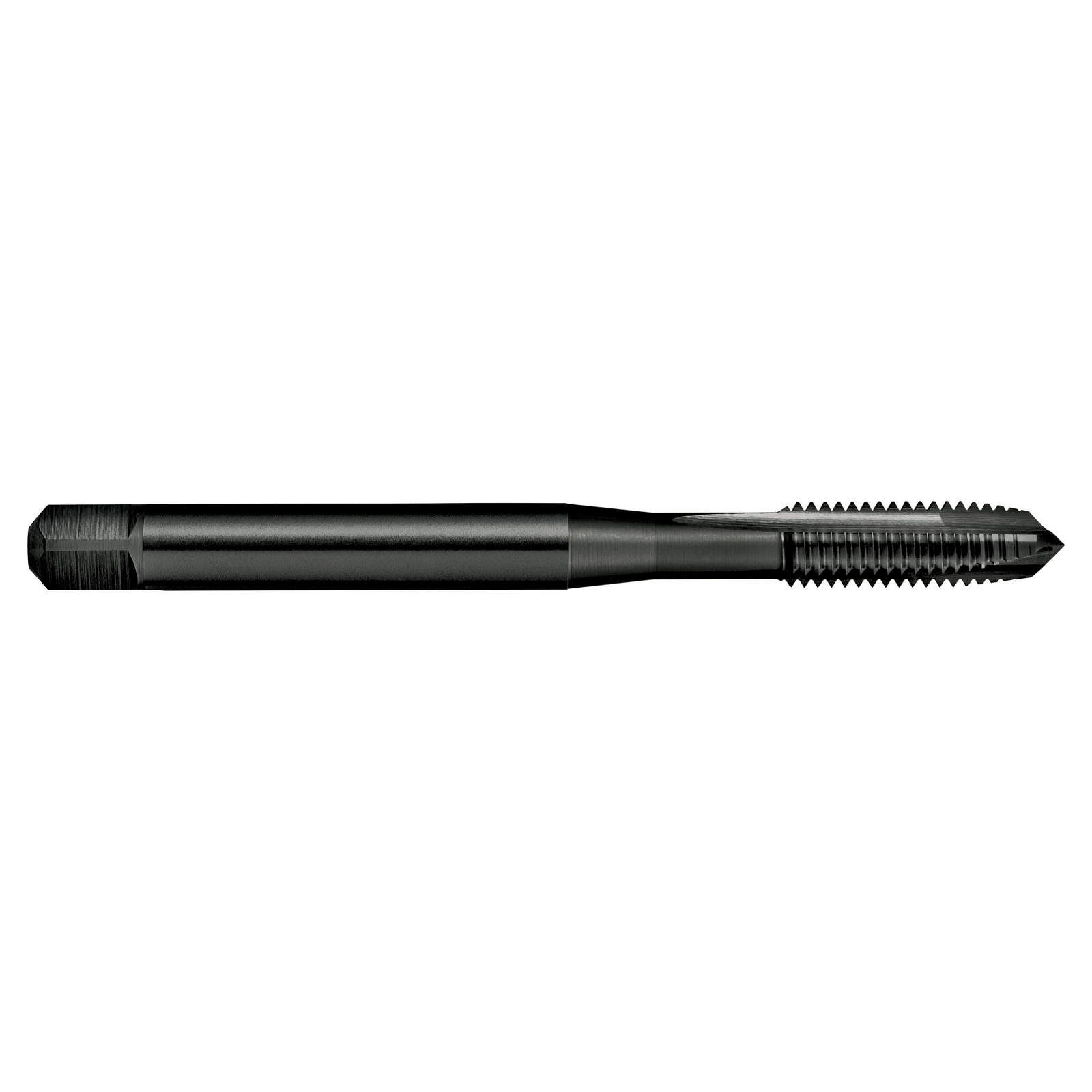

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1680794
Barcode # 9311963428772
Brand Sutton Tools
Shipping Weight 0.0340kg
Shipping Width 0.014m
Shipping Height 0.013m
Shipping Length 0.115m
Shipping Cubic 0.000021000m3
