Tap T168 UNC 1-8 2B Gun NH Din2184-1 B HSSE Blu Sutton T1682540

Features

• Use in harder short chipping materials up to 42 HRc
• Through holes
• Suitable for machine operations
• Depths up to approx. 3 x d1

Specifications

• Designation: NH
• Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN2184-1
• Thread Form: UNC
• Nut Tolerance: 2B
• Lead: Form B / 4.5 x P

Part Number/SKU: T1682540

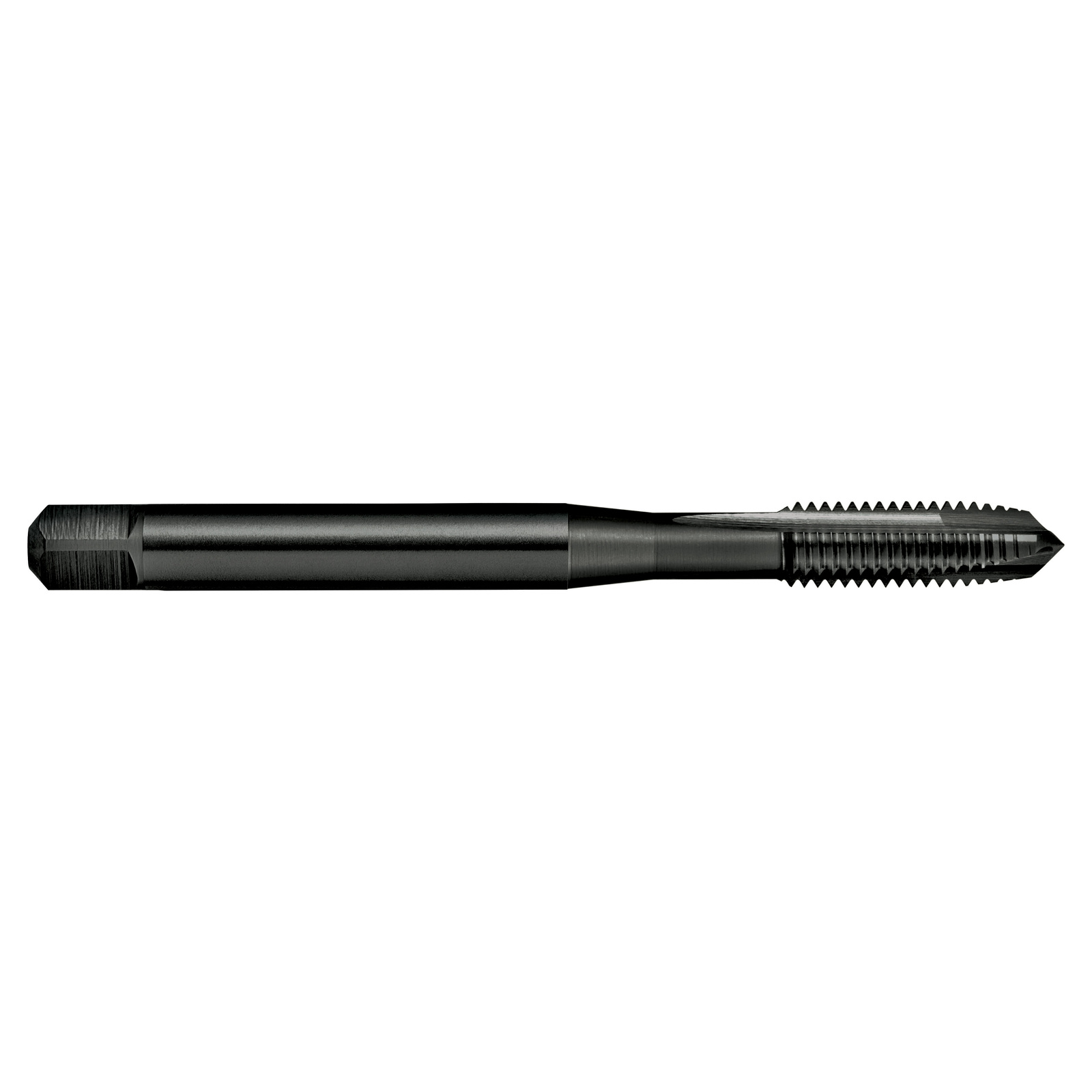

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
