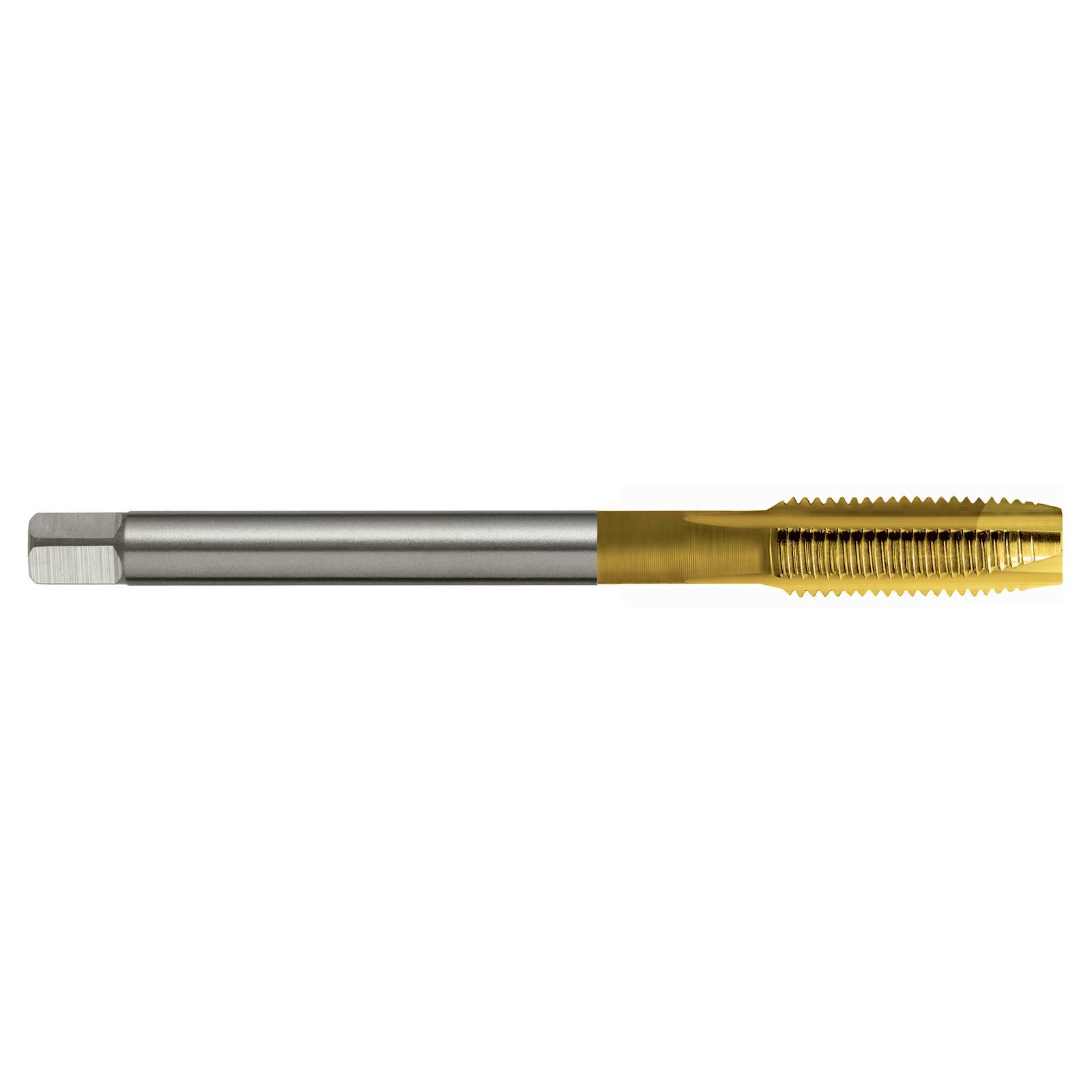

TAP T157 MF 18x1.5 6H GUN N DIN374 B HSSE TiN T1571807

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Through holes
• Suitable for machine operations
• Depths up to 3 x d1

Specifications

• Designation: N (for normal and general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN374
• Thread Form: ISO Metric Fine (MF)
• Lead: ISO 2 / 6H Form B / 4.5 x P

Part Number/SKU: T1571807

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
