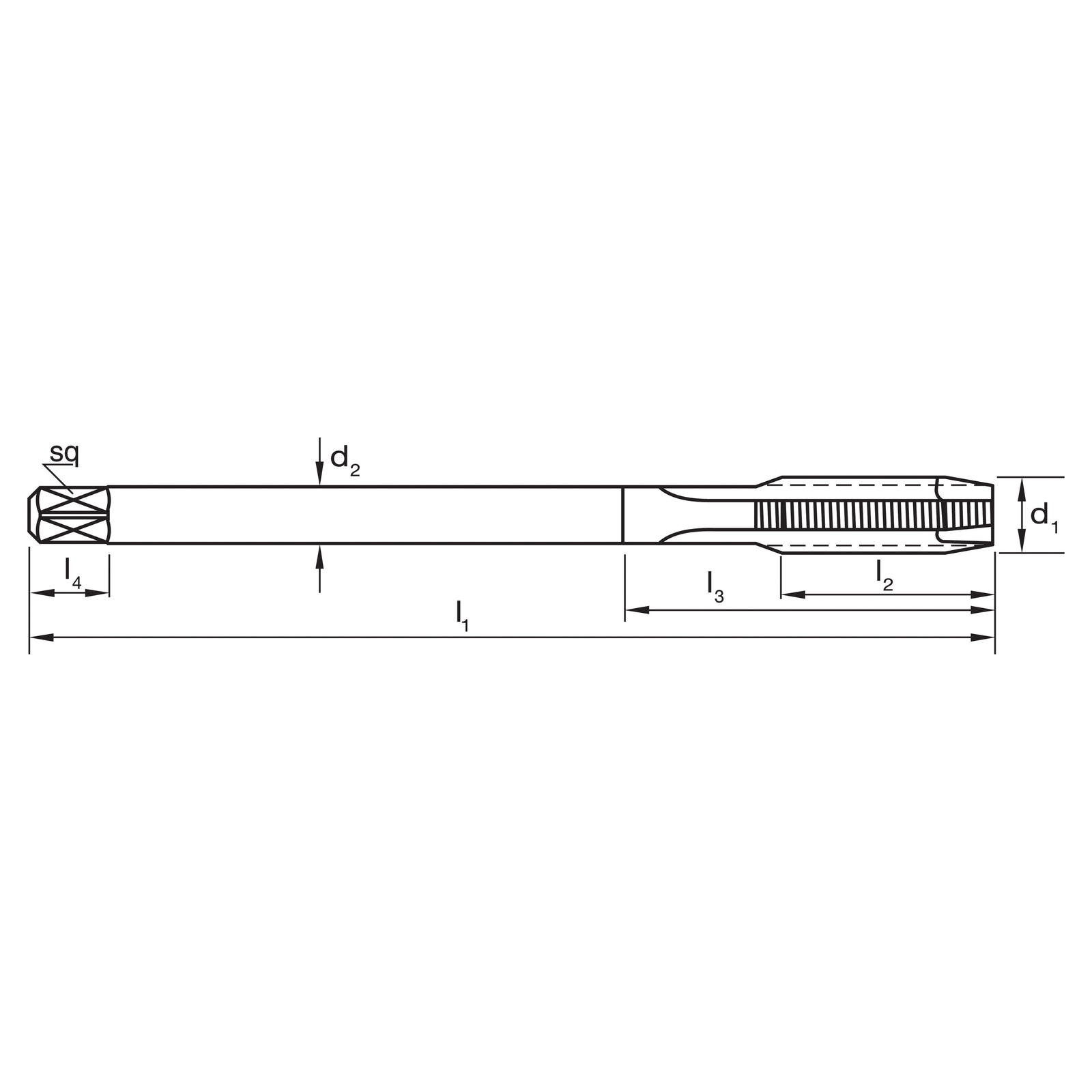

Tap T135 M 18x2.5 6H Gun NH Din376 B PM-V3 Blu Sutton T1351800



Features

  • Suitable for harder short chipping materials up to 42 HRc
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: NH
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1351800

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1351800
Barcode # 9311963412375
Brand Sutton Tools
Shipping Weight 0.1520kg
Shipping Width 0.023m
Shipping Height 0.024m
Shipping Length 0.125m
Shipping Cubic 0.000069000m3
