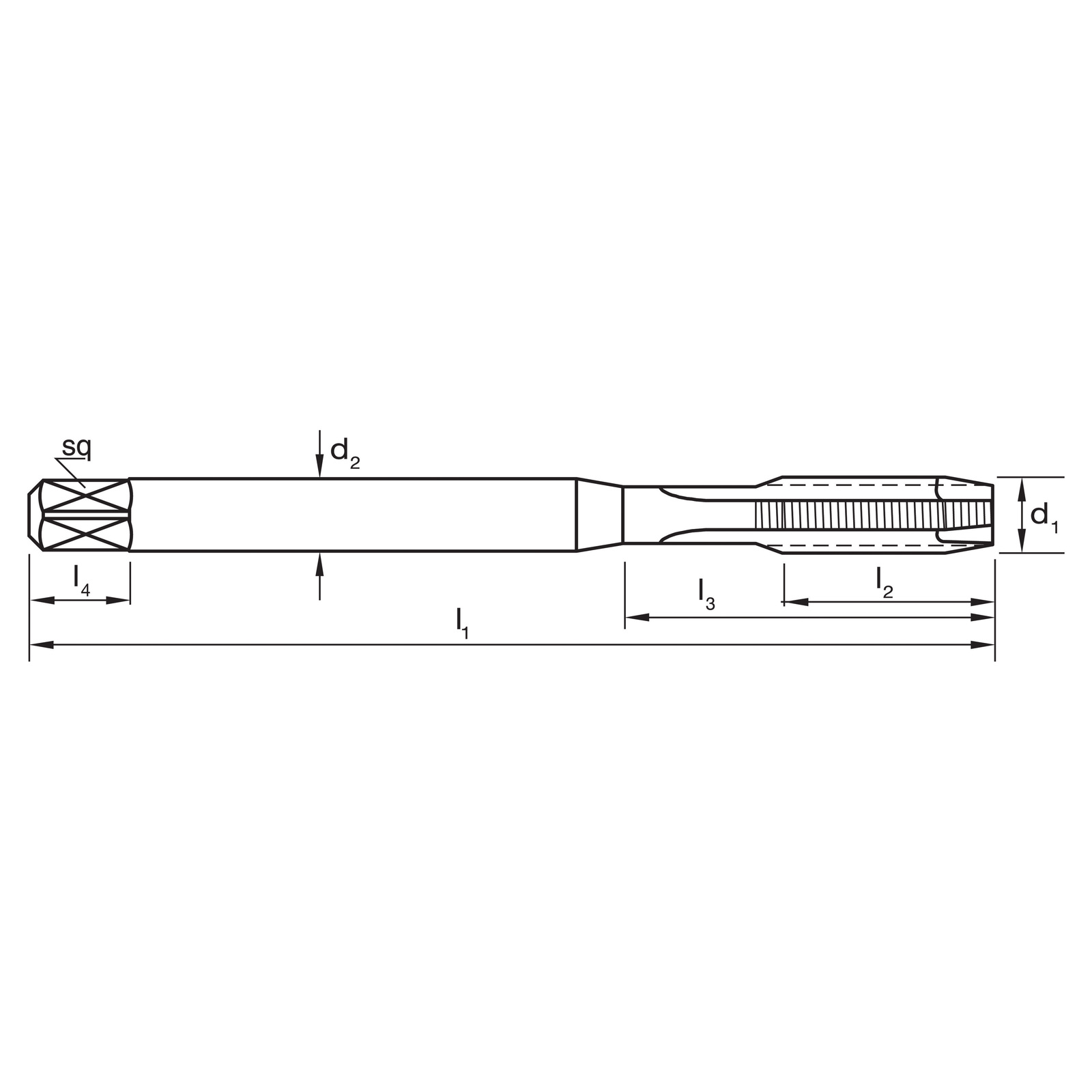

Tap T134 M 3x0.5 6H Gun NH Din371 B PM-V3 Blu Sutton T1340300



Features

  • Suitable for harder short chipping materials up to 42 HRc
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: NH
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1340300

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1340300
Barcode # 9311963412283
Brand Sutton Tools
Shipping Weight 0.0060kg
Shipping Width 0.011m
Shipping Height 0.009m
Shipping Length 0.082m
Shipping Cubic 0.000008000m3
