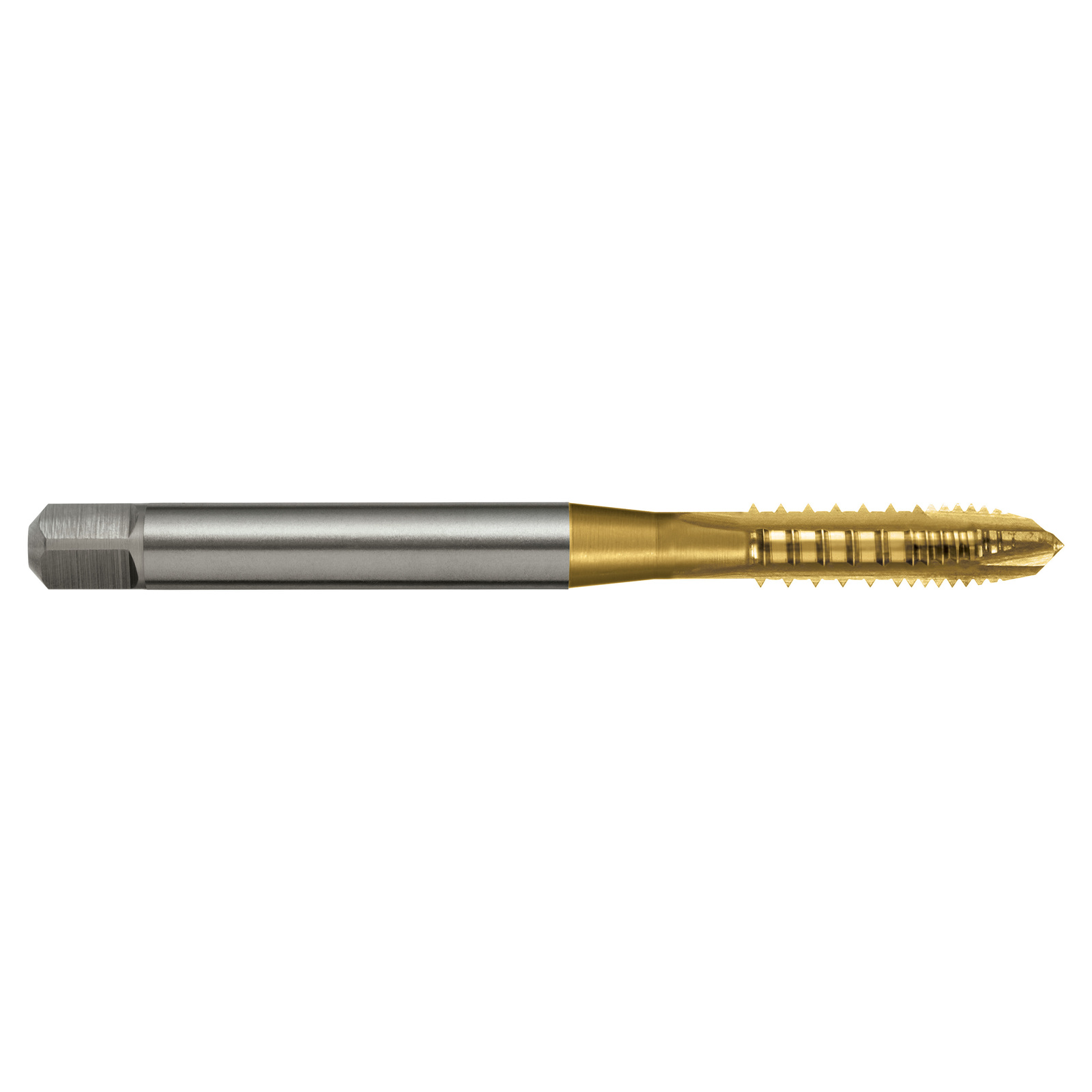

TAP T130 M 8x1.25 6H GUN W-AZ DIN371 B HSSE TiN T1300800

Features

• Interrupted threads allow greater lubricant flow and reduce friction
• Use in soft elastic materials
• For long-chipping materials
• Through holes up to 3 x d1

Specifications

• Designation: W (for Soft Materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN371
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form B / 4.5 x P

Part Number/SKU: T1300800

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
