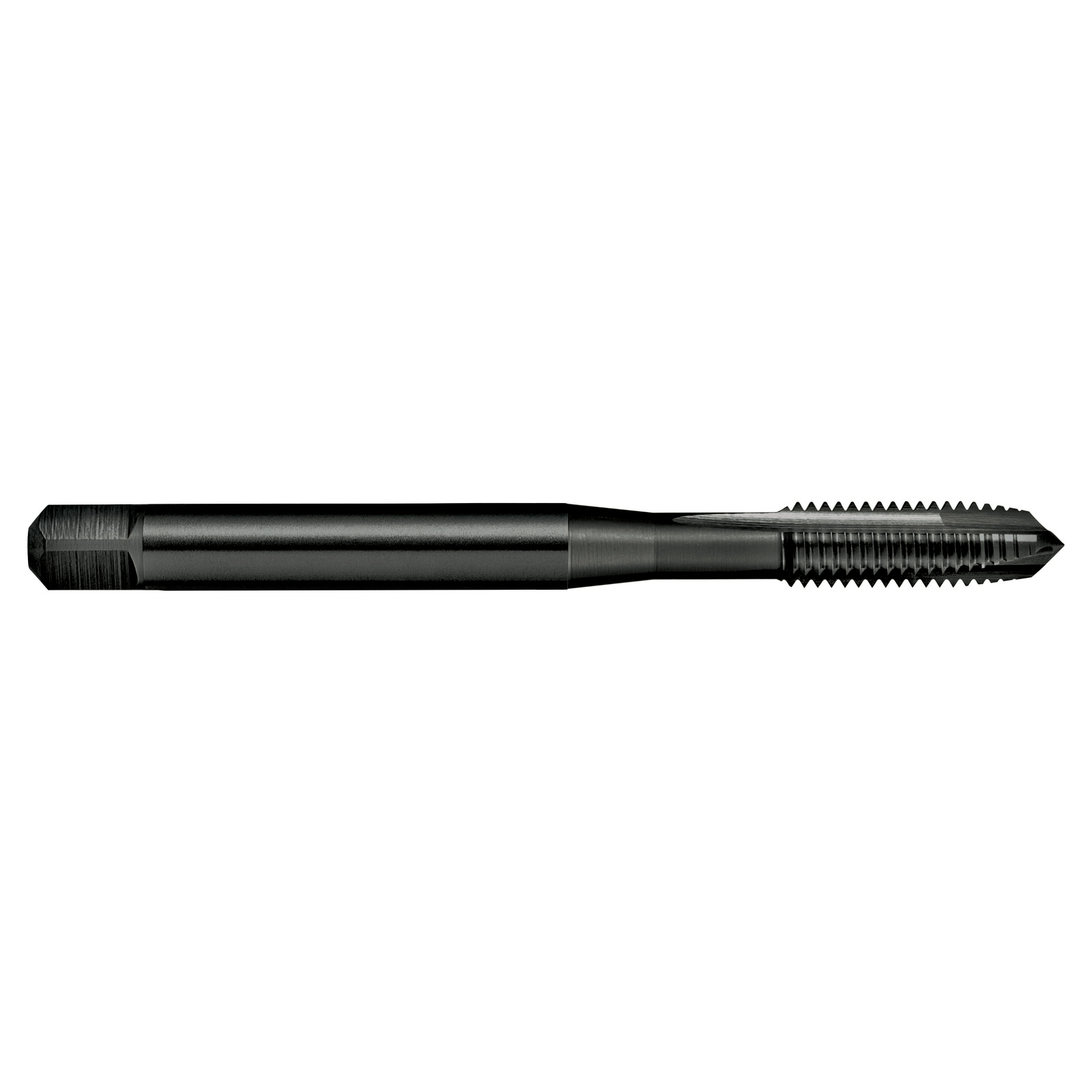

Tap T124 M 8x1.25 6H Gun W Din371 B HSSE Blu Sutton T1240800

Features

• Suitable for use in soft materials
• CrN for copper and non-ferrous materials
• Through holes
• Depths up to 3 x d1

Specifications

• Designation: W (for soft materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN371
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form B / 4.5 x P

Part Number/SKU: T1240800

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
