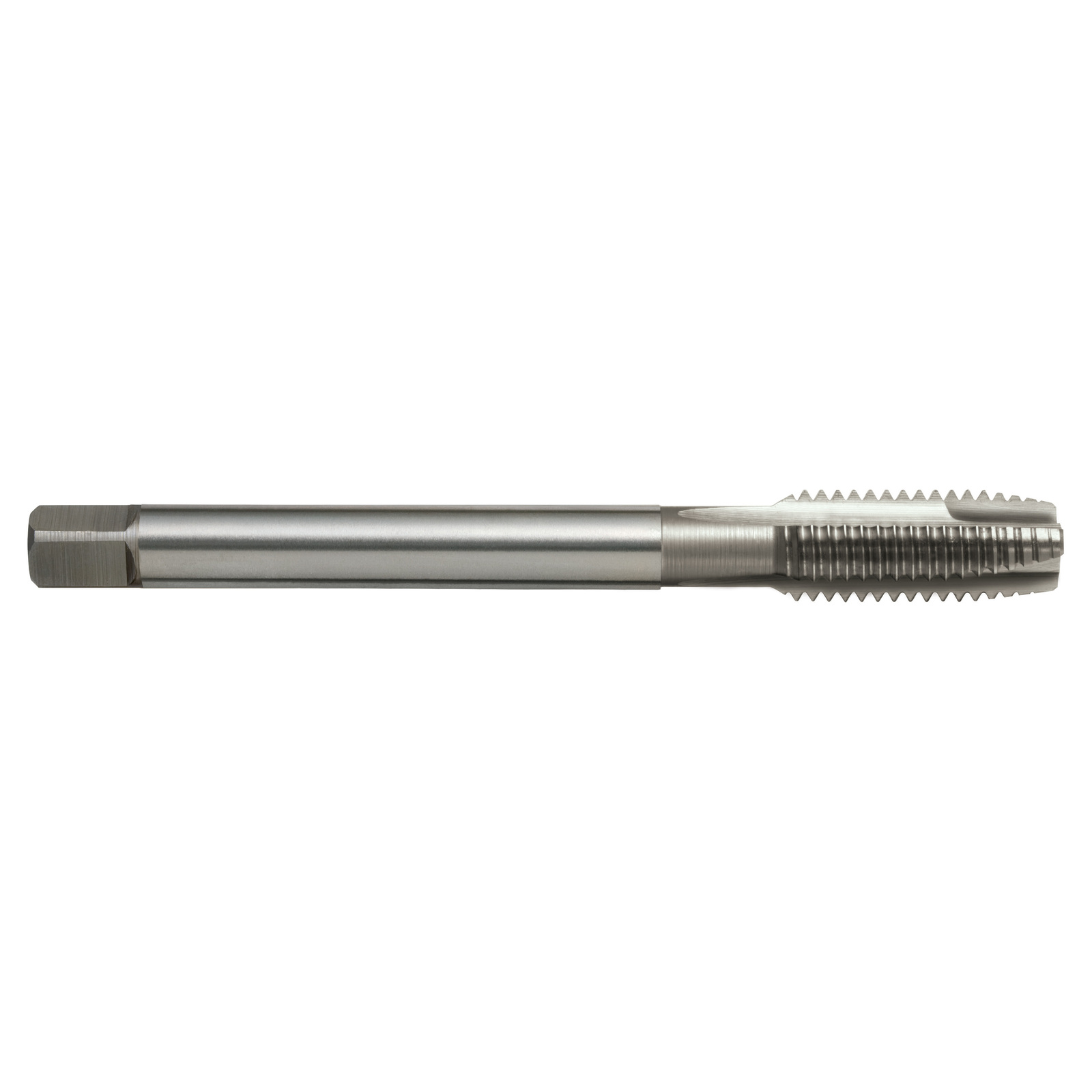

Tap T101 M 48x5 6H Gun N Din376 B HSSE Sutton T1014800

Features

• Suitable for materials up to 1000N/mm2
• Through holes
• Depths up to 3 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN376
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form B / 4.5 x P

Part Number/SKU: T1014800

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
