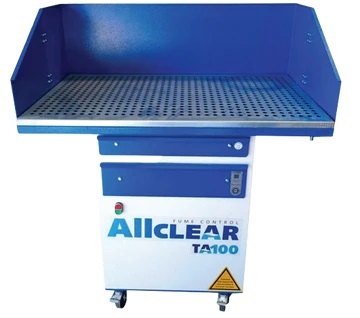

TA100 Grinding/Welding Table Fume Filter Unit 1PH/240V 91100TA1

The Allclear TA100 is a mobile down draft table suitable for welding and light grinding applications. Equipped with a cassette-type main filter and a G4 + mesh prefilter, the TA100 is an ergonomic and compact system that provides ultimate ease of use.

It provides 7m per second airspeed on the working surface provided by a 1kW AC motor 240V. The TA100 is made from a rust-proof galvanized body and is mounted on caster wheels for greater mobility. The unit offers a fume extraction solution for extracting dangerous welding and grinding fume particles ensuring a safe and healthy working environment.

Filters:

F9 Box Filter: 91990117
Spark Arrestor: 91990119

Technical Data:

Motor Power: 1.0 kW
Mains Supply: 220v / 50Hz
Maximum Air Flow: 3000m3 per hour
Average Flow at Surface: 1200m3 per hour
Main Filter: F9 cassette filter
Pre Filter: G4 + mesh
Carrying Capacity: 500 Kg
Body: Galvanised Steel
Fan: Aluminium
Noise: 68 dba
Sound Insulation: Acoustic Sponge
Dimensions mm (L x W x H): 700 x 1100 x 1255
Weight: 50kgsr



Part Number/SKU: 91100TA1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 91100TA1
Brand Weldclass
Shipping Weight 50.0000kg
Shipping Width 0.900m
Shipping Height 0.900m
Shipping Length 1.800m
Shipping Cubic 1.458000000m3
Unit Of Measure ea
