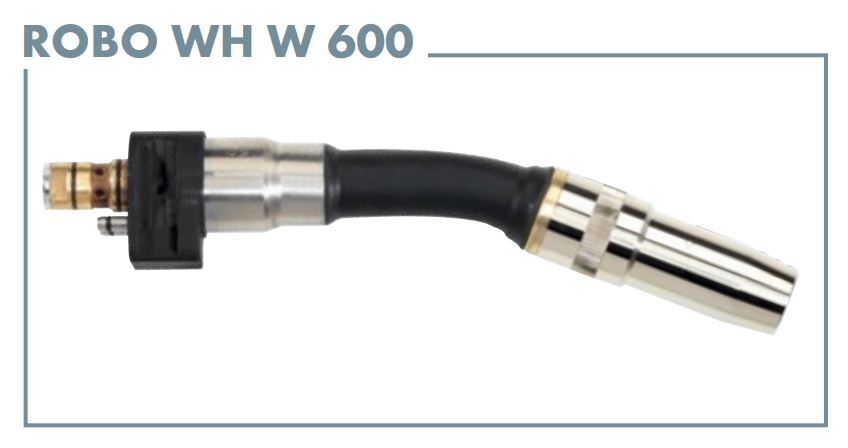

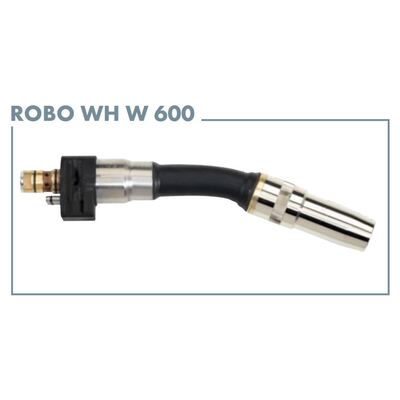

Robotic MIG/MAG Welding Torch With 45° WH W 600 Neck Water Cooled Binzel 962.1748.1

Technical data (EN 60 974-7

• ROBO WH W 600
• Type of cooling: liquid cooled
• Rating: 600 A CO2
• 550 A mixed gases M21 (EN ISO 14175)
• Duty cycle: 100%
• Wire-Ø: max. 1.6 mm
• Torch geometries: 0°/22°/35°/45°
• Quick adaptation to changing welding tasks

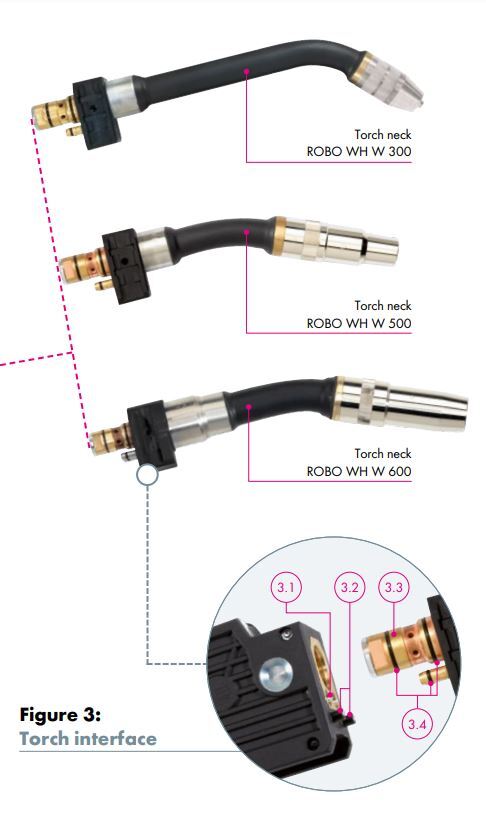

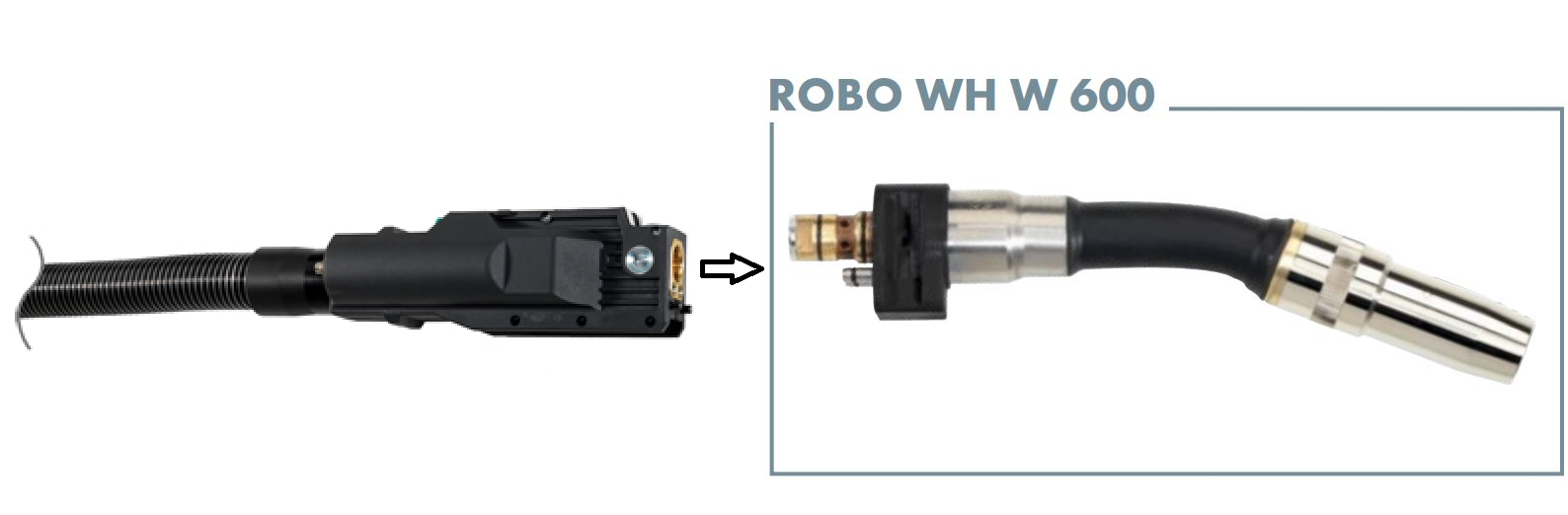

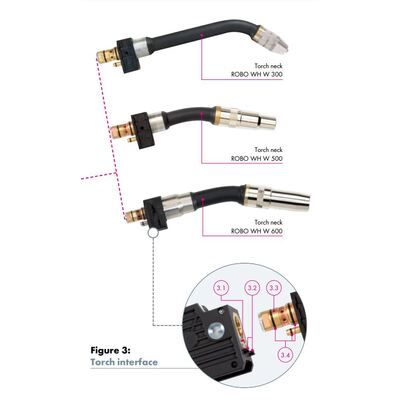

The liquid cooled MIG/MAG neck change welding torch system WH/WH-PP enables the complete torch neck to be replaced either manually or automatically  – thanks to the innovative interface technology on the change body. This means torches of the same  design can be replaced in seconds for maintenance purposes, or torches with special geometries for different welding positions can be changed as required. Equally, the replacement of contact tip and gas nozzle and the monitoring of the
TCP also takes place outside of the welding cell, thus increasing the availability of the system and reducing downtimes.
Advantages that speak for themselves:

•  Fast torch neck change and replacement of wear parts increase system availability
•  Automated torch exchange possible
•  Flexible adaptation to changing welding tasks
•  Also available as a push-pull system for precise wire feeding
•  Liquid cooled up to 600 A

Degree of automation: High

• Typical areas of application:
• Automotive construction
•  Automotive suppliers (Tier 1, Tier 2)
•  Commercial vehicle construction
•  Earth-moving equipment
•  Rail vehicle construction
•  Machine and steel construction

Material:

•  Construction steels (coated/non-coated)
•  Chrome-nickel steels
•  Duplex steels
•  Nickel basic materials
•  Mixed compounds
•  Aluminum materials
•  Magnesium materials
•  Copper materials
• Special materials

Part Number/SKU: 962.1748.1
