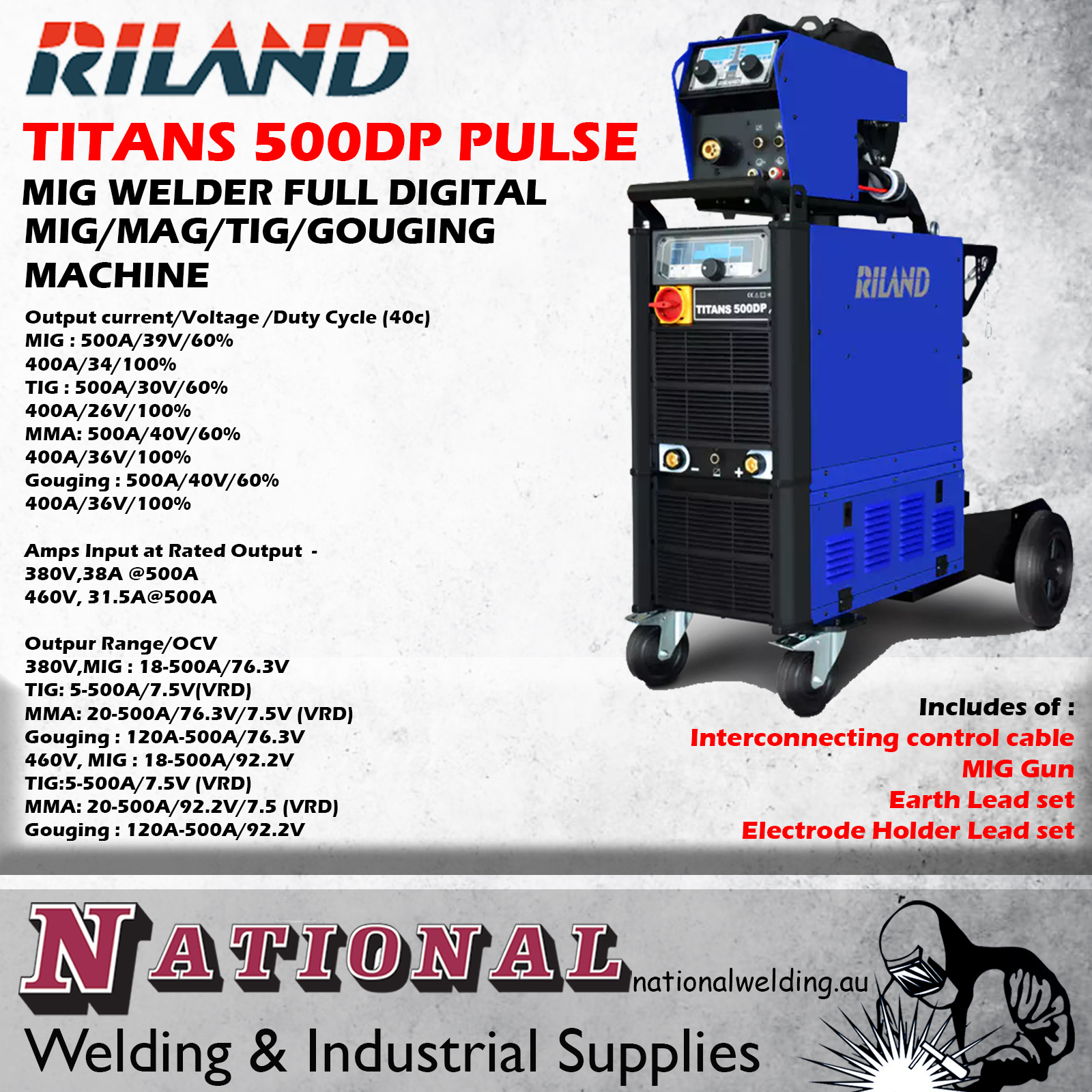

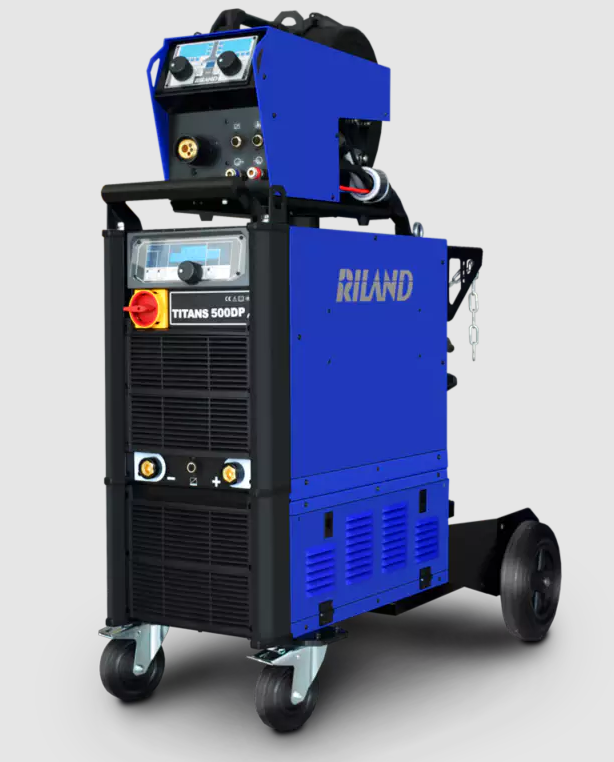

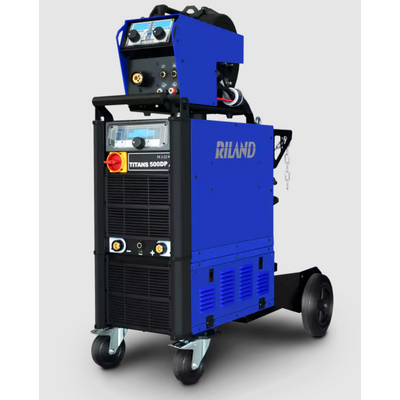

Riland TITANS 500DP Pulse MIG Welder Full Digital and Fully Fucnction Pulse MIG Machine

Package Includes

• Interconnecting control cable
• MIG Gun
• Earth Lead set
• Electrode Holder Lead set

Processes

• MIG/Synergic
• MIG/Pulse
• MIG/Gasless
• Lift-TIG
• MMA
• Carbon arc Gouge
• Remote control
• Automation interface

Features

• Full digital double Pulse MIG Machine can weld Various Plate such as aluminium alloy, copper alloy, stainless steel etc
• Multi-Process include MIG/MAG, Lift TIG, MMA and Carbon Gouge
• Double Pulse MIG Commit to perfect aluminium welding.
• Built-im expert data, synerge adjustment, fine droplet transfer
• Module design idea make welding concise and flexible by your own Demand.
• Spool Gun Compatible

Specifications

• Input Voltage/Phase/ Frequency - 380V-460V/3P/50-60Hz
• Output current/Voltage /Duty Cycle (40c)
  • MIG : 500A/39V/60%
  • 400A/34/100%
  • TIG : 500A/30V/60%
  • 400A/26V/100%
  • MMA: 500A/40V/60%
  • 400A/36V/100%
  • Gouging : 500A/40V/60%
  • 400A/36V/100%
• Amps Input at Rated Output  -
  • 380V,38A @500A
  • 460V, 31.5A@500A

• Outpur Range/OCV
  • 380V,MIG : 18-500A/76.3V
  • TIG: 5-500A/7.5V(VRD)
  • MMA: 20-500A/76.3V/7.5V (VRD)
  • Gouging : 120A-500A/76.3V
  • 460V, MIG : 18-500A/92.2V
  • TIG:5-500A/7.5V (VRD)
  • MMA: 20-500A/92.2V/7.5 (VRD)
  • Gouging : 120A-500A/92.2V

• Optional Accessories
  • Push Pull MIG Welding Gun
  • Digital MIG Gun
  • TIG Torcg
  • Wire Feeder Wheel Set
  • Welding Torch Bracket
  • Remote Control Box
  • Multi-Voltage Transformer
  • Off Road Trolley
  • Externak Welding Tractor

Part Number/SKU: RTIAN500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
