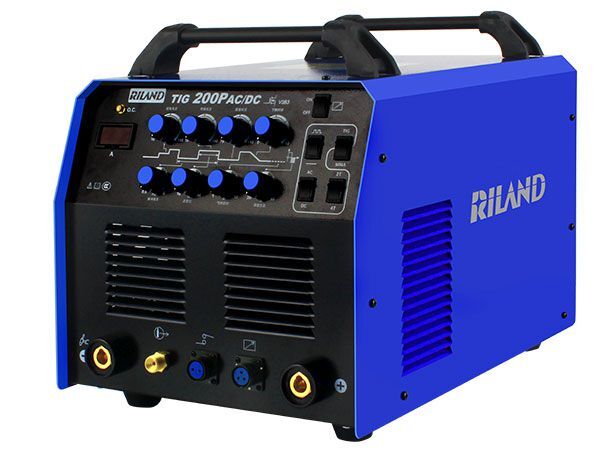

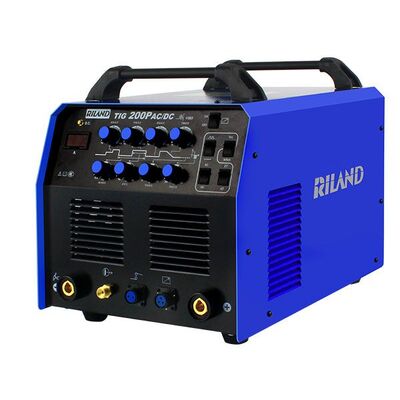

Riland TIG 200P AC/DC TIG/MMA Welder RTIG200P

• Multi-process welder offers AC TIG welding, DC TIG welding, Pulse TIG welding and MMA welding functions;
• AC waveform control, AC/DC with pulse function, and pulse frequency adjustment range of 0.5-5Hz;
• Self-adaptive clean width helps maintain a superior finish of weld seam while minimizing the consumption of tungsten electrode;
• Zero-crossing control in AC welding process, providing constant force to the workpieces (thin sheet metal) continuously and preventing the arc from restriking;

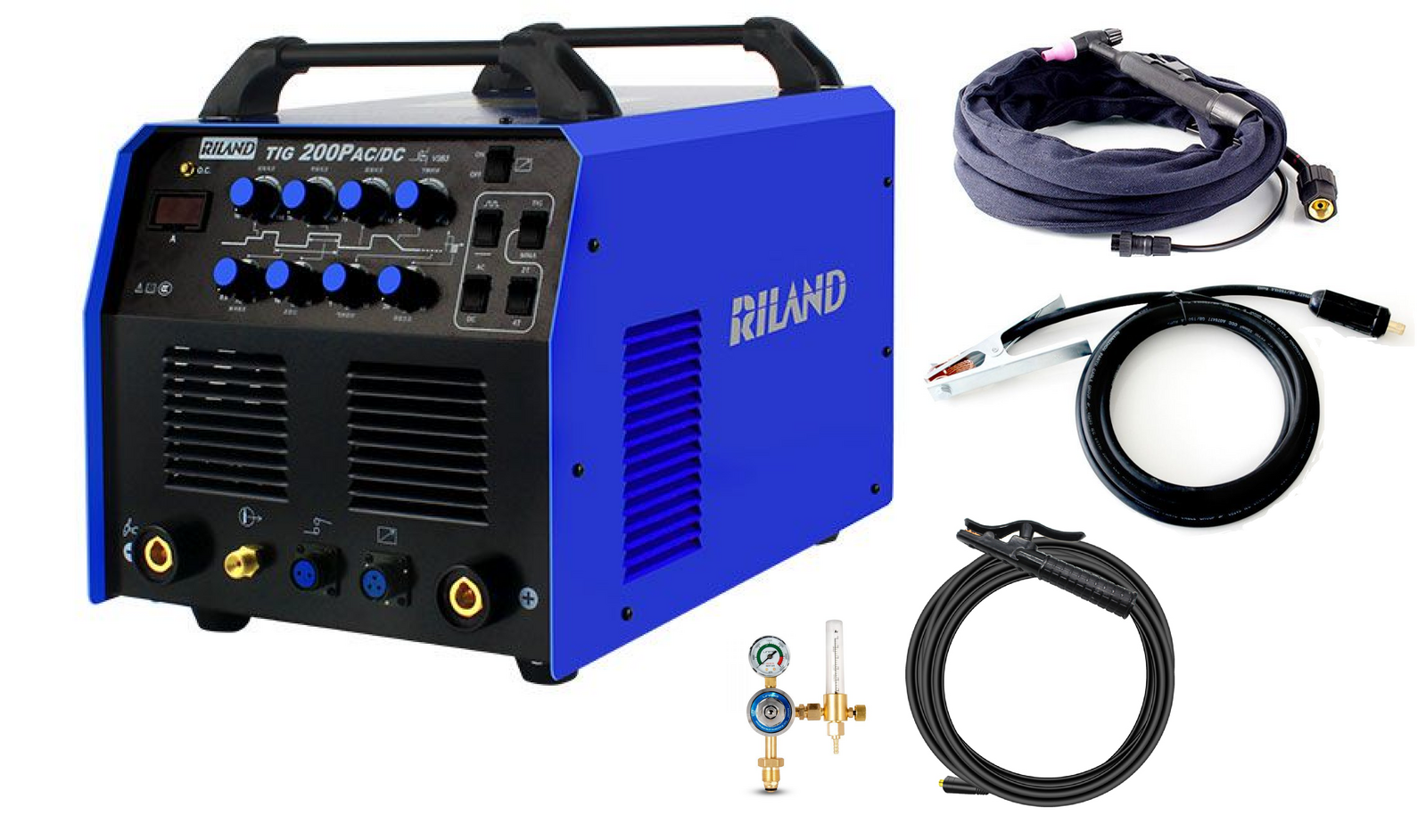

Package Includes

• Inverter Power source
• TIG Torch 4 Metres
• Earth Clamp Lead 3 Metres
• Electrode Holder Lead 3 Metres

Features

• AC/DC Selectable
• Pulse frequency and pulse width adjustable
• AC Balance adjustable
• 2T/4T
• Post flow adjustable
• Down-slope adjustable
• Start current and crater current adjustable
• Tri-Proof Air duct Design

Specifications

• Input Voltage/Phase/Frequency - 220V/1P/50-60Hz
• Output current/Voltage /Duty Cycle (40c)
  • TIG: 190A/17.6V/30%
  • 104A/14.2V/100%
  • MMA: 150A/26V/30%
  • 82A/23.3V/100%
• Amps Input at Rated Output -
  • TIG: 30A@190A
  • MMA: 30A@150A
• Output Range/OCV -
  • TIG : 10-190A/45V
  • MMA: 10-150A/45V



Alternative SKU: RTIG 200P AC/DC

Part Number/SKU: RTIG200P
